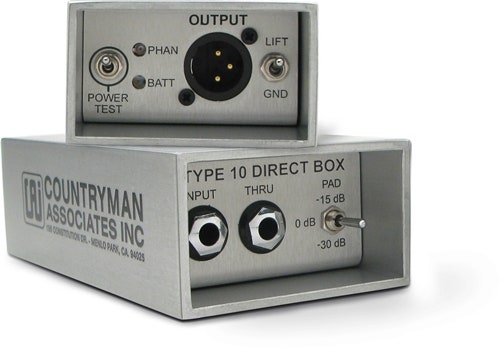

Countryman TYPE 10

COUNTRYMAN

Indestructable active DI-box.

The Type 10 delivers your sound with the lowest distortion, lowest noise, and highest accuracy of any direct box. The result is a clean, precise signal that is completely faithful to the original sound.

  • Frequency Response: 10 Hz to 50 kHz (+/- 1 dB)
  • Noise (Shorted Input, 22 Hz to 20 kHz): 1.8 μVrms (-115 dBVrms)
  • Distortion (1 Vpp, Typical Load): THD: < 0.001% at 1 kHz < 0.005% from 30 Hz to 20 kHz IMD: < 0.005% (10 kHz / 60 Hz, 4:1)
  • Transformer Isolation Voltage: >500 VAC from instrument ground to XLR Pin 1
  • Input Protection: 220 Vrms and 20,000 V static discharges
  • Maximum Input Level (1% THD): 6 Vpp (0 dB pad), 33 Vpp (-15 dB pad), 190 Vpp (-30 dB pad)
  • Input Resistance: 10MΩ (0dB pad), 10 kΩ (-15, -30 dB pad)
  • Input Capacitance: 240pF (equal to 3 ft of low-capacitance guitar cable)
  • Output Polarity:Pin 2 positive
  • Dimensions and Weight: 1.75 x 3 x 6 in. (45 x 77 x 152 mm) 20.8 oz (0.59 kg)
  • Article nr: 1300010

    Product information

    Armored inside and out, with a molded core wrapped in an extra thick architectural aluminum housing, Countryman DI boxes are virtually indestructable.

    The Type 10 delivers your sound with the lowest distortion, lowest noise, and highest accuracy of any direct box. The result is a clean, precise signal that is completely faithful to the original sound.

  • Frequency Response: 10 Hz to 50 kHz (+/- 1 dB)
  • Noise (Shorted Input, 22 Hz to 20 kHz): 1.8 μVrms (-115 dBVrms)
  • Distortion (1 Vpp, Typical Load): THD: < 0.001% at 1 kHz < 0.005% from 30 Hz to 20 kHz IMD: < 0.005% (10 kHz / 60 Hz, 4:1)
  • Transformer Isolation Voltage: >500 VAC from instrument ground to XLR Pin 1
  • Input Protection: 220 Vrms and 20,000 V static discharges
  • Maximum Input Level (1% THD): 6 Vpp (0 dB pad), 33 Vpp (-15 dB pad), 190 Vpp (-30 dB pad)
  • Input Resistance: 10MΩ (0dB pad), 10 kΩ (-15, -30 dB pad)
  • Input Capacitance: 240pF (equal to 3 ft of low-capacitance guitar cable)
  • Output Polarity:Pin 2 positive
  • Dimensions and Weight: 1.75 x 3 x 6 in. (45 x 77 x 152 mm) 20.8 oz (0.59 kg)
  • Downloadable
