Celestion CDX1-1430 8R

CELESTION

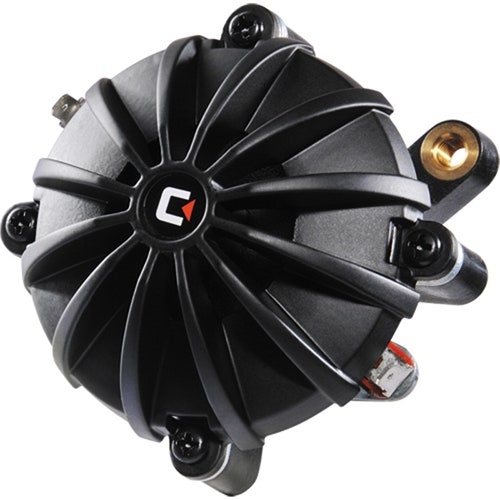

1" exit, neodymium magnet, 1,4" voice coil compression driver. 50W RMS 108dB, 8ohm

1.4" copper clad aluminium voice coil

Copper sleeve on pole reduces inductive rise for improved HF performancel

Ferrofluid in magnet gap prevents sensitivity loss through thermal compressionl

Aluminium diaphragm combined with elastomer surround delivers lower distortion performancel

Finite Element Analysis (FEA) used to optimise both magnet and acoustic designl

Screw mounting adaptor availablel

  • Power rating: 50W RMS
  • Nominal impedance: 8ohm
  • Frequency range: 2000-20,000Hz
  • Sensitivity: 108dB
  • Recommended min. crossover: 2500Hz (12dB/oct)
  • Voice coil diameter: 35mm/1.4in
  • Voice coil material: Copper clad aluminium
  • Diaphragm material: Aluminium
  • Surround material: Elastomer
  • Overall width: 90mm/3.54in
  • Overall depth: 58mm/2.3in
  • Fitting:Flange (2 x M6 holes on 76mm, 3.0in PCD
  • Throat exit: 25,4mm/1.0in
  • Unit weight: 0.47kg/0.6lb
Article nr: 2213367

Product information

Together, Celestion’s ferrite and neodymium magnet compression drivers create an extremely comprehensive product range, providing professional audio systems builders with optimised high frequency performance at every price point.


1.4" copper clad aluminium voice coil

Copper sleeve on pole reduces inductive rise for improved HF performancel

Ferrofluid in magnet gap prevents sensitivity loss through thermal compressionl

Aluminium diaphragm combined with elastomer surround delivers lower distortion performancel

Finite Element Analysis (FEA) used to optimise both magnet and acoustic designl

Screw mounting adaptor availablel

  • Power rating: 50W RMS
  • Nominal impedance: 8ohm
  • Frequency range: 2000-20,000Hz
  • Sensitivity: 108dB
  • Recommended min. crossover: 2500Hz (12dB/oct)
  • Voice coil diameter: 35mm/1.4in
  • Voice coil material: Copper clad aluminium
  • Diaphragm material: Aluminium
  • Surround material: Elastomer
  • Overall width: 90mm/3.54in
  • Overall depth: 58mm/2.3in
  • Fitting:Flange (2 x M6 holes on 76mm, 3.0in PCD
  • Throat exit: 25,4mm/1.0in
  • Unit weight: 0.47kg/0.6lb
