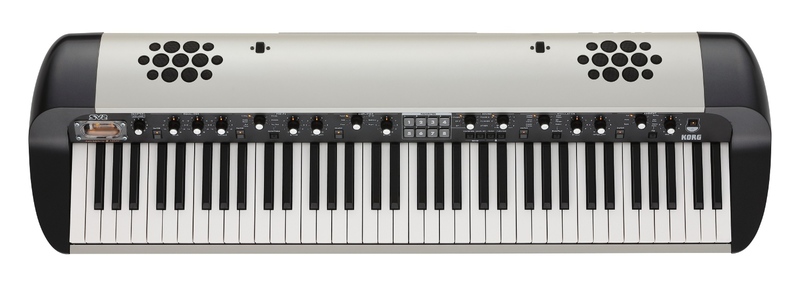

KORG SV2-73S Stage Vintage Piano with Speakers

Never before has a single instrument captured the signature sound, the unique performance experience, and the aesthetic satisfaction of so many definitive keyboards as the KORG SV-2 Stage Vintage.

Ten years ago, KORG launched the Stage Vintage line to wild acclaim. The combination of an intuitive live panel, the premier keybed, the ultimate realization of coveted vintage sounds, the clarity of world-class pianos, the warmth and character of period-proper effects, and the distinctively smooth shape has inspired musicians from around the globe for over a decade. Available with either 88 keys or 73 keys, these SV-2 models are the latest additions to the Stage Vintage series, featuring more of everything that makes an SV great. More Sounds. More Memory. More Polyphony. More Presets. More Control. It is quite literally everything one could want in a performance stage piano … and more. Plus, be sure to check out the SV-2S models, equipped with an internal K-ARRAY speaker system.

More. More. More.

The SV-2 contains over ten times the sample data available in previous SV models, providing ample memory for many all-new piano and keyboard sounds. The SV-2 is home to 72 compelling sounds, and provides 64 memory locations to store edited Favorites for instant access during performance. Using the SV-2 Editor software, users are now free to create their own split and layered programs and save them to one of the Favorites locations. In fact, a single favorite can access up to three timbres at once – A piano/bass split with a layer of strings, for example. While user splits must be created using the SV-2 Editor, the split point on the keyboard can be adjusted directly from the front panel. Plus, polyphony of the SV-2 now stands at 128 voices, allowing more effective layering of sounds or sustained chording.

See downloads for more information

Specifications:

Keyboard

SV-2/SV-2S (73 keys): 73 keys (E to E), Velocity sensitive KORG RH3 (Real Weighted Hammer Action 3)

SV-2/SV-2S (88 keys): 88 keys (A to C), Velocity sensitive KORG RH3 (Real Weighted Hammer Action 3)

Touch selection: Eight curves

Tuning: Master Transpose, Master Tune, Tuning curves

Sounds:

Sound generation: EDS-X (Enhanced Definition Synthesis - eXpanded)

Maximum Polyphony: 128 notes

Multi Sound: Layer, Split

Factory Sounds: 72 (6 Basic sounds x 2 sets, 6 variations)

EP1 (Vintage): MK I Suitcase, MK I Stage, MK II Suitcase, MK II Stage, MK V Stage, MK V Bright, Dyno EP, Dyno EP Bright, Wurly, Wurly Classic, Wurly Dark, Wurly Bright

EP2 (Various): FM Piano 1, FM Piano 2, FM Piano 3, FM Piano & Pad, Pianet T, Pianet N, Hybrid Piano, Hybrid Tine, Wurly & Strings, FM & Strings, MK II & Pad, FM & Pad

Piano 1 (Acoustic): German Grand, German Classic, Italian Grand, Italian Bright, Japanese Grand, Japanese Bright, Austrian Grand, Austrian Classic, Japanese Upright, Upright Bright, German Upright, Rock Piano

Piano 2 (Various): Electric Grand, German Mono, KORG M1 Piano, KORG SG-1D, Digital Piano, Electra Piano, Tack Piano, Honky-Tonk, Piano & Strings, Piano & Pad, Piano & Synth, Piano & Brass

Clavier: Clav AC, Clav AD, Clav BC, Clav BD, Harpsichord, Harpsichord Oct, Perc. Organ, Rock Organ, Jazz Organ, VOX Organ, Church Organ, Pipe Organ

Other: Full Strings, Classic Strings, Tape Strings, Strings & Voices, Warm Pad, Bright Pad, Orchestra, Pizzicato & Glock, Brass, Synth Brass, Pad/Mini Lead, Pad/SynthLead

Favorite sounds: 64 (8 banks x 8 variations) for saving of customized settings

Effects:

6 effects (5 effects + 1 total effect)

Equalizer: Bass, Mid, Treble

Pre FX: Red comp, Treble boost, U-Vibe, Vibrato, Tremolo, VOX Wah (Auto or Pedal control)

Amplifier models: Clean, Twin, Tweed, AC30, Boutique, Organ Amp + Cabinet Models, Valve Reactor Technology – 12AX7 (ECC83) valve

Modulation: Classic Chorus, Black Chorus, Orange Phaser, Small Phaser, MX Flanger, Rotary (Slow/Fast control)

Ambient: Room, Plate, Hall, Spring, Tape Echo, Stereo Delay (Tap tempo)

Total FX (only editable with SV-2 Editor): Stereo Mastering Limiter, Stereo Limiter

Panel controls:

Master Volume, Transpose, Local Off, Touch, Function

Sound Select: TYPE knob, VARIATION knob, FAVORITES 1–8 switches

Favorite Sound select: 1–8 switches, SOUND TYPE knob

Effect Control:

Equalizer: On/Off switch, BASS knob, MID knob, TREBLE knob

Pre FX: On/Off switch, TYPE knob, SPEED knob, INTENSITY knob, AUTO/PEDAL switch (available when the TYPE = Vox Wah)

Amplifier: On/Off switch, TYPE knob, DRIVE knob

Modulation: On/Off switch, TYPE knob, SPEED knob, INTENSITY knob, Slow/Fast switch (available when the TYPE = Rotary.)

Ambient: On/Off switch, TYPE knob, DEPTH knob, Tap (available when TYPE = Stereo Delay)

Input/Output connections:

Audio Output: L, R connector (XLR balanced), L/MONO jack, R MONO jack (6.3 mm [1/4"] unbalanced), stereo phone jack on the front panel 6.3 mm [1/4"].

Audio Input: L/MONO jack, R/MONO jack (6.3 mm [1/4"] unbalanced)

MIDI: IN jack, OUT jack

USB: 2.0 Type B connector (doubles the MIDI Interface)

Damper Pedal: KORG DS-2H (included), DS-1H(sold separately)

Pedal 1: PS-1 foot switch, PS-3 foot switch (sold separately)

Pedal 2: Volume/Expression, XVP-20, EXP-2, PS-1 foot switch, or PS-3 foot switch (sold separately)

Amplification (SV-2S)

Speakers: 2 x 2.5" with 2 x 3" passive radiator

Amplification power: 2 x 15 W

Main specifications

Power Supply: Internal switching adapter, AC 100~240 V, 50/60 Hz

Power Consumption: SV-2: 16 W, SV-2S: 25 W

Dimensions (W x D x H, excluding music stand):

SV-2/SV-2S (73key): 1,143 mm x 347 mm x 157 mm/45.0" x 13.66" x 6.1"

SV-2/2V-2S (88key): 1,356 mm x 347 mm x 157 mm/53.3" x 13.66" x 6.1"

Weight (excluding music stand)

SV-2 73key: 17.2 kg/37.91 lbs, SV-2S 73key: 18.3 kg/40.34 lbs

SV-2 88key: 20.35 kg/44.86 lbs, SV-2S 88key: 21.45 kg/47.28 lbs

Others

Included Items: Power cable, Music stand, DS-2H damper pedal, Quick Guide.

Accessories (sold separately): ST-SV1 piano stand, CB-SV1 carrying bag (73 and 88 version), DS-1H damper pedal, XVP-20 EXP/VOL pedal, EXP-2 foot controller
