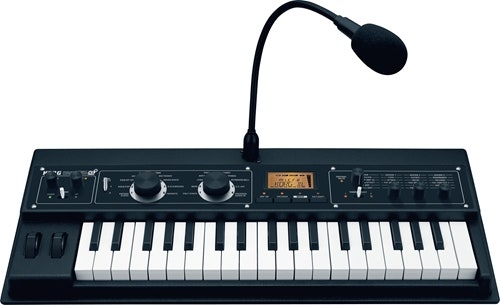

KORG MicroKorg-XL+ Analog Modeling Synth
A fresh update to the classic Microkorg sounds and look, making it an ideal compact keyboard.
Lush analog modeled synthesizer sounds that are characteristic of the microKORG have been freshly added to the microKORG +. In addition, for band use, the microKORG XL+ comes equipped with the piano sound from Korg's classic stage piano, the SGproX (famous for its ability to stand out in your band's mix), as well as its hard-edged grand-type electric piano. This compact package also includes sounds from the M1 and the VOX organ, vintage tape-type string and flute machines, as well as other gorgeous sounds from keyboard history. Of course, these sounds can be played full-range like the originals that inspired them, either by using the onboard octave switch, or by connecting your choice of any MIDI-capable full-sized keyboard of choice. Each of these 128 programs are genuinely inspiring sounds, giving the microKORG XL+ plenty of variety to serve as your main keyboard or as a secondary keyboard in your rig.
The microKORG XL+'s sound engine uses MMT (Multiple Modeling Technology), borrowing from Korg's well proven wealth of analog modeling technology. The MMT sound engine has been featured on numerous products, and provides two oscillators that generate huge powerful sounds. Oscillator 1 gives you a total of seven types of oscillator algorithm to choose from, including formant waveforms such as human voice, and PCM/DWGS waveforms for vintage keyboard and strings. It also lets you use techniques that cannot be imitated on typical PCM synthesizers, such as cross modulation, unison, and VPM (Variable Phase Modulation). By taking advantage of modulation (sync or ring) with Oscillator 2, it's easy to create complex and powerful sounds.
The microKORG XL+ can function as a powerful Vocoder that lets you connect a mic and use its audio input to shape the tonal character of the oscillator's sound to create "talking" effects. The Vocoder consists of a 16-band filter bank that can simulate the Vocoder sounds of the past and also shift the filter frequencies (Format Shift function) or adjust the level and pan of each band to dramatically change the overall sonic character. Using the Vocoder is an easy way to add sounds that can be found in today’s popular electronic music. Since a gooseneck microphone is included, you can immediately start using the Vocoder in your songs.
The Powerful Effect Engine You Expect From Korg. Two master effects utilize the effect engine that was brought to perfection in Korg's Kaoss Pad series, giving you a total of 17 powerful effect types including delay and echo effects as well as dramatic effects such as ring modulator and grain shifter. In addition, effects such as delay can be synchronized to MIDI clock for a wide range of possibilities in live performance.
Battery-powered for Convenient Portability. The microKORG XL+ can take advantage of the included AC adaptor or it can run on six AA alkaline batteries. Checking in at a mere 22 inches long and 4.4 lbs. in weight (main unit only; not including batteries or mic), the microKORG XL+ is a convenient size to take with you, opening up new performance possibilities on the go.
- Tone Generator System: MMT (Multiple Modeling Technology)
- Multi Timbral: Maximum 2 (when using Layer, Split, or Multi)
- Voice polyphony: Max 8 voices (when using Vocoder, it is 4 voices)
- Structure: [Synth] 2 oscillators + noise generator, Oscillator 1: Waveform: 8 types (Sawtooth, Pulse, Triangle, Sine, Formant, Noise, DWGS, Audio In), Modulation: Waveform, Cross, Unison, VPM, Oscillator 2: Waveform: 4 types (Sawtooth, Pulse, Triangle, Sine) Modulation: Ring, Sync, Ring+Sync, Waveshape: Type: Drive, Decimator, HardClip, OctSaw, MultiTri, MultiSin, SubOSCSaw, SubOSCSqu, SubOSCTri, SubOSCSin, LevelBoost,
- Multimode Filters: Filter 1: -24 dB/oct LPF ~ -12 dB/oct LPF ~ -12 dB/oct BPF ~ -12 dB/oct HPF ~ Thru, Filter 2: LPF, HPF, BPF (swichable)
- 16 channel vocoder, adjustable level and pan for each channel, Formant Shift function, Formant Hold function
- 37 notes Keyboard (Natural Touch mini-keyboard, velocity sensitive)
- Controller: Pitch bend wheel, Modulation Wheel
- Effects: Timbre: 2 band EQ, Master effect: 2 units, 17effect algorisms.
- Arpeggiator: Six types: UP, DOWN, ALT1/2, Random, Trigger, Individual step on/off function
- Programs: 128 programs (A/B banks x 8 genres x 8 category)
- Inputs:[AUDIO INPUT 1] (1/4” phone jack, unbalanced, with MIC/LINE switch) – Rear Panel [AUDIO INPUT 1 (MIC)] (XLR jack / balanced) – Front Panel
- Outputs:[L/MONO, R] (1/4” Standard phone jacks / unbalanced), [Phone] (1/4” Stereo Standard phone jacks)
- MIDI: IN, OUT
- USB: Type B
- Power Supply:DC 9 V (AC adapter), or six AA alkaline batteries (sold separately)
- Dimensions: 556(W)x231(D)x73(H)mm/21.89"(W)x9.09"(D)x2.87"(H)
- Weight: 2.0 kg/4.41 lbs. (without batteries and included microphone)
- Accessories: AC adapter, Gooseneck Microphone
SPECIFICATIONS
