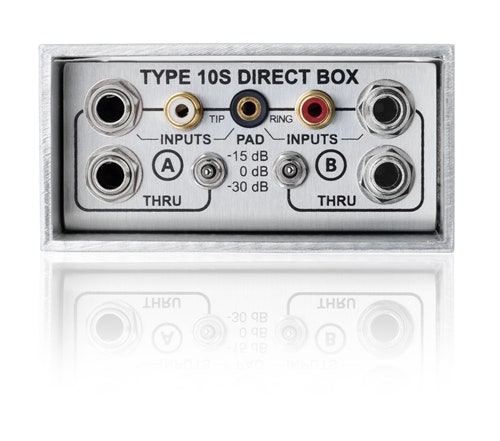

Countryman TYPE 10S

Indestructable active DI-box. Stereo

Article number 1300012

The Type 10s delivers your sound with the lowest distortion, lowest noise, and highest accuracy of any direct box. The result is a clean, precise signal that is completely faithful to the original sound

  • Frequency Response 10 Hz to 50 kHz (+/- 1 dB)
  • Deviation from Linear Phase: 30 Hz: +/- 2° 100 Hz to 20 kHz: 0°
  • Noise (shorted input, BW = 22 Hz to 20 kHz): 1.8 uVrms (-115 dBVrms)
  • Distortion (1 Vpp in, RL= 1.2 kOhm through 200 feet of XLR cable): THD (1 kHz): < 0.001%
  • THD (30 Hz to 20 kHz): < 0.005 % IMD (10 kHz/60 Hz, 4:1): < 0.002%
  • Cross-Talk Rejection: > 105 dB (20 Hz to 20 kHz)
  • Power Options: 48 V Phantom (1.5 mA) 9 V Battery (4.8 mA, 130 hours on a typical alkaline)
  • Input Protection: 220 Vrms and 20,000 V static discharges
  • Transformer Isolation Voltage: > 500 V from instrument ground to either XLR output pin 1
  • Padding Settings: dB -15 -30 dB
  • RF Filtering: Input: 1.5 MHz low-pass filter Output: 60 kHz low-pass filter
  • Maximum Input Level (1% THD): 0 dB pad: 5 Vpp -15 dB pad: 28 Vpp -30 dB pad: 158 Vpp
  • Input Resistance: 0 dB pad: 10 MOhm -15, -30 dB pad: 10 kOhm RCA and 1/8" inputs: 20 kOhm
  • Input Capacitance: 240 pF (equal to 3 ft of low-capacitance guitar cable)
  • Output Polarity: Pin 2 positive
  • Dimensions: 6.25" x 4" x 2" (159 mm x 102 mm x 51 mm)
  • Weight: 31.2 oz (0.88 kg)
