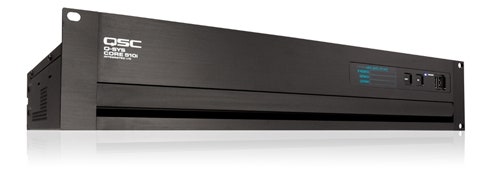

QSC CORE-510i 256/256 IN/OUT

Q-SYS network + analog I/O processor

Article number 1399507A

The Q-SYS™ Core 510i processor is an audio, video and control processing system that leverages Intel™ CPUs and motherboards as well as a dedicated, Linux™ realtime operating system developed by QSC to provide class-leading capabilities for AV systems of any scale. The Q-SYS Core 510i processor offers the most flexible audio I/O of any Core in the Q-SYS Platform, perfect for applications that require a diversity of analog, digital and networked audio connectivity. It features eight onboard I/O card slots that can be populated with any combination of Q-SYS Type-II I/O card allowing diverse connectivity options.

  • Description: System processor and control engine with integrated I/O (or I/O Frame peripheral in "I/O Frame mode")
  • Configuration Modes: "Q-SYS Core mode" - centralized processor and control engine for a Q-SYS system “I/O expander suited to integrating high channel-count networked I/O cards (Dante, CobraNet, AVB)” - peripheral to an additional Q-SYS Core processor on the system
  • Supported Peripherals: I/O-8 Flex Channel Expander, I/O-USB Bridge, PTZ-IP Camera series, I/O Frame, I/O-Frame 8s, I/O-22, I/O-11 Series, Page Station Series, TSC Series touchscreens (when configured in “Q-SYS Core mode”)
  • Software Requirements: Q-Sys Designer 6.x.x
  • Network Channel Capacity: 256 x 256
  • Audio I/O Capacity: 8 audio I/O card slots - accommodates up to 128x128 total onboard I/O channels
  • AEC Channel Capacity: 64 at 200ms tail length (available in “Q-SYS Core mode” only)
  • Multitrack Player Capacity: 16 tracks, exapndable to 128 tracks (available in "Q-SYS Core mode" only)
  • Media Drive Capacity: Approximately 6GB on the default drive (accessible in "Q-SYS Core mode", upgrade options are available)
