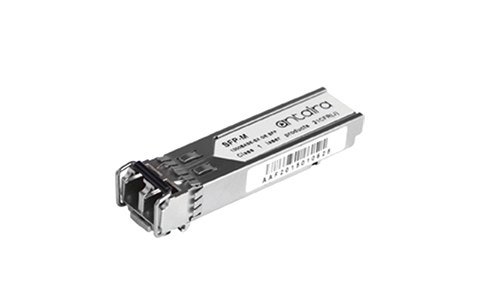

ATTERO TECH SFP-MM-1G Multimode
1Gbit <b>multi-mode</b> SFP module (Synapse compatible)
Article number 1402430
The SFP-M is a high performance and cost-effective module for serial optical data communication applications specified for
multimode of 1.25 Gb/s. It operates on +3.3V power. The module is intended for multi-mode fiber, operates at a nominal
wavelength of 850nm, and complies with the Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP).
Each module consists of a transmitter optical subassembly, a receiver optical subassembly, and an electrical subassembly.
All are housed in a metal package and the combination produces a reliable component.
850nm VCSEL
Data Rate: 1.25Gbps, NRZ
Single +3.3V Power Supply
RoHS Compliant and Lead-free
AC/AC Differential Electrical Interface
Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP)
Duplex LC Connector
Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25 Gbps
Compliance with ANSI specifications for Fiber Channel applications at 1.06 Gbps
Eye Safety (Designed to meet Laser Class 1, complies with EN60825-1)
