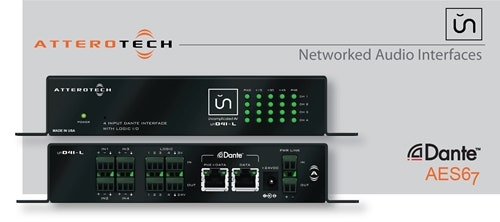

ATTERO TECH unD4I-L
Danteā¢/AES67 Networked Audio Interface - 4 Mic/Line Inputs with Logic I/O
Article number 1401040
The unD4I-L four input Dante interface is the ideal device for adding mic/line inputs to a Dante system.
The addition of four logic outputs allows easy interface with microphone switches and indicator LEDs.
The unD4I-L features four balanced mic/line inputs, each with software selectable +48V phantom power
and 8 gain levels. Front panel indicators show each channel's gain and phantom power status for easy
troubleshooting. The unD4I-L has two network connections to allow Dante Daisy Chaining. Dante Daisy
Chaining further simplifies system infrastructure wiring by allowing multiple unD4I-Ls to use a single
CAT 5 home run connection to a network switch. Power can also be daisy chained. The unD4I-L is powered
by either external +24VDC or any PoE network switch. All adjustable parameters,
like mic/line gain and phantom power, are software controlled.
