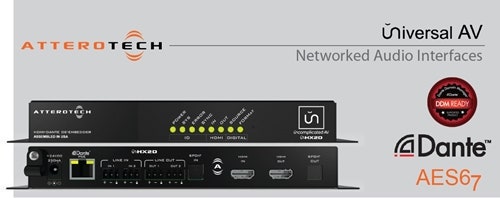

ATTERO TECH unHX2D HDMI Audio
Dante™/AES67 Networked Audio Interface - 4x4 HDMI Audio De-embedder / Embedder
Article number 1401520
The unHX2D is a Dante enabled HDMI de-embedder/embedder designed to bridge
2-channel PCM HDMI audio to/from a Dante/AES67 audio network. In addition, the
unHX2D includes two line level analog inputs and outputs that can be independently
bridged to/from a Dante/AES67 audio network. An adjustable audio delay buffer is
included on the Dante™ output for audio and video lip sync. The unHX2D features
flexible audio routing between system input sources and outputs, and facilitates
bridging audio from either video sources or monitors to a Dante/AES67 network.
The HDMI output operates as a pass thru repeater of HDMI input video source.
The unHX2D also includes installer adjustable EDID management settings via software.
