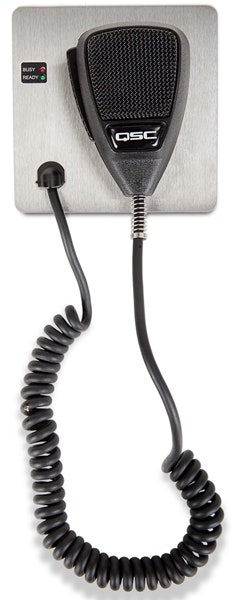

QSC PS-X Pagestation expander

Pagestation expander - Fully compatible with all Q-SYS page station models

Article number 1399657

    Fully compatible with all Q-SYS page station models Connects directly to page station simplifying installation Variety of Paging Logic functions are supported including: Source to zone routing Priority and interrupt logic Page delay Preambles Emergency paging priority over-ride Rugged, handheld PTT (Push To Talk) microphone with convenient magnetic mount included

      Audio Channel Capacity: 1 microphone output
    • Microphone PTT: momentary switch
    • Front Panel Indicators: Ready, Busy: LEDs (red/green)
    • Rear Panel Connectors: RJ45 microphone connector
    • RJ45 Page Station connector (Audio and GPIO)
    • Dimensions (HWD): 11.8 cm x 12.0 cm x 3.8 cm
    • Accessories Included: Mounting plate, connector ship kit, warranty card, and PTT handheld microphone
    • Dynamic Range    Unweighted:> 115 dB    A-weighted:> 118 dB
    • Frequency Response: 200Hz - 6.5 kHz
    • Sensitivity: -56 dBV (1.6 mV) @ 1 Pa
    • Impedance: 360 Ω Mute Infinite attenuation
