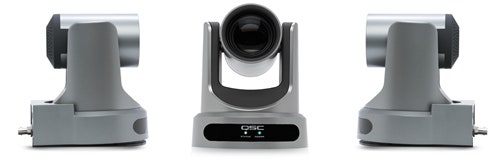

QSC PTZ 20x60
Conferencing Camera for the Q-SYS AV-to-USB Bridging Solution
Article number 1399320
The PTZ20x60 camera integrate with the Q-SYSTM Platform and Q-SYS bridging peripherals like the Q-SYS I/O-USB Bridge or Q-SYS TSC-7t Touch Screen Dialer & Controller to deliver professional quality conference video feeds alongside industry leading audio processing for small, medium and large sized meeting rooms for utilizing soft-codec conferencing or computer-based capture.
- Image Sensor: 1/2.7", Low Noise CMOS Image Sensor
- Lens characteristics (wide to tele): 20x optical zoom, f=4.42mm to 88.5mm, F1.8 to F2.8; Horizontal Field of View: 60.7° to 3.36°, Vertical Field of View: 34.1° to 1.89°
- Minimal Illumination: 0.05 lux at F1.8 (AGC On)
- Noise Reduction: 2D and 3D
- S/N Ratio: ≥ 55dB
- Pan / Tilt Angle and Speed: Pan: ±170° rotation, speed: 1.7° to 100°/sec, Tilt: -30° to +90° rotation, speed: 1.7° to 69.9°/s
- Ceiling Mountable: Image rotation for ceiling mounting, ceiling mount bracket accessory available
- HD Video Outputs: HDMI and 3G-SDI
- Ethernet: 100BaseTX / 1000BaseT Video Resolutions: HDMI / SDI: 1080p, 60/50/30/25, 1080i, 60/50, 720p, 60/50/30/25 Network (30fps, 16:9): 1080p, 720p, 576p 360p, 270p, 180p
- Input Voltage: DC 12V or PoE (802.3af)
- Current Consumption: 12v DC @ 1.0A (max)
- Dimensions: (169mm x 142mm x 164mm)
- Weight: 1.35 kg
