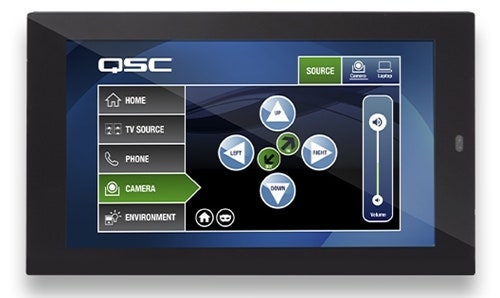

QSC TSC-55w-G2

In-Wall Touch Screen Controller

Article number 1399685

QSC TSC-55w-G2-BK

  • Capacitive LCD Touch Surface: In-plane switching (IPS) technology
  • High Resolution Display: 1280x720 pixels with 400 Nits (brightness)
  • Power Over Ethernet: Allows for simplified single cable installation
  • Universal Mounting Options: Included accessories for mounting to US standard and European wall and junction boxes
  • Versatile: Ability to operate in portrait or landscape orientation
  • Complete design freedom: Drag and drop any control Q-SYS element from a Q-SYS design schematic into
  • UCI Editor and easily deploy your design to the touch screen, without any programming experience. Q-SYS
  • UCI Editor allows the import of room diagrams, corporate logos or other graphical elements in all major graphic file formats.
  • Features

  • Panel Dimensions:148.5 x 87.5 x 33.7 (mm) 5.5"
  • Viewable Screen Dimensions (diagonal)
  • Resolution: 1280 x 720
  • Wallmount Option: Yes
  • Table Top Option: No
  • Panel Orientation: Vertical / Horizontal
  • PoE (Power over Ethernet): IEEE PoE 802.3af class 3 device via LAN port
