EAW RSX218

Call for price

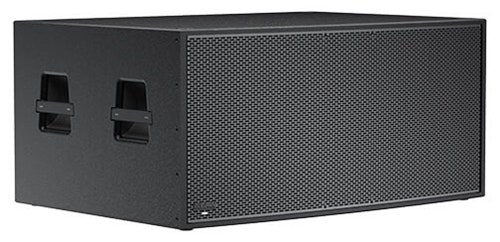

    2x18" - Self-powered Subwoofer

Designed to streamline setup and deliver maximum results in minimum time, RADIUS couples unique and intelligent features with EAW’s signature acoustical design to deliver solutions for rental firms and system integrators.

The powerful RSX218 dual 18” subwoofer is ideal for production applications, offering push-button cardioid operation for added sonic control. The RSX218 features onboard electronics (1400W maximum) and ultra-wide ports that drastically reduce low-frequency turbulence. EAWmosaic™ app provides total system optimization from anywhere in the venue, plus intuitive room design and prediction in a single, comprehensive application.

With the proven sonic performanceof EAW’s acoustic design and DSP mastery plus full Dante integration across the line, RADIUS delivers an intelligent and flexible system to fit any budget.

    Operating Range

    27 Hz to 125 Hz

    Nominal Beamwidth

    Horizontal 360°

    Vertical 360°

    Calculated Axial Output Limit (whole space SPL)

    Average: 129 dB (whole space), 135 dB (half space)

    Peak: 135 dB (whole space), 141 dB (half space)

    Input

    Type: Electronically balanced

    Max Input Level
    21dBu

    Impedance
    20 kOhm (balanced)

    Input Wiring
    XLRF, Pin 1 chassis, pin 2 +, pin 3 – separate loop-thru XLRM (for analog signal only)

    Input Selection
    Analog, Dante

    Amplifiers & Processing (LF)

    Type
    Modified Class D

    Maximum Output
    1400W

    Driver Protection
    Integral DSP limiting

    AC Mains (nominal)

    Connector
    Neutrik PowerCon®

    Input
    100 V to 240 V

    Frequency
    50 Hz to 60 Hz

    PowerConsumption
    Idle – 22W

    Peak Draw – 230 W

    Controls/Communication

    Connections
    2x Neutrik® etherCON™, RJ-45

    Protocols
    Ethernet/Dante

    Software
    EAWmosaic™ (available on the App Store)

    Indicators
    LCD Screen on amplifier panel for UI, Logo LED (User-definable behavior)

    User Controls
    Push-button Rotary Encoder

Article nr: 9058608

Product information

RADIUS (RSX Series) couples unique and intelligent features, including OptiLogic™, with EAW’s signature acoustical design to deliver solutions for rental firms and system integrators. Optimal sonic performance has never been easier or more accessible, and system design and control has never been more approachable. The EAWmosaic™ app provides total system optimization, plus intuitive room design and prediction in a single, comprehensive application. RADIUS harnesses full Dante™ integration across the

Designed to streamline setup and deliver maximum results in minimum time, RADIUS couples unique and intelligent features with EAW’s signature acoustical design to deliver solutions for rental firms and system integrators.

The powerful RSX218 dual 18” subwoofer is ideal for production applications, offering push-button cardioid operation for added sonic control. The RSX218 features onboard electronics (1400W maximum) and ultra-wide ports that drastically reduce low-frequency turbulence. EAWmosaic™ app provides total system optimization from anywhere in the venue, plus intuitive room design and prediction in a single, comprehensive application.

With the proven sonic performanceof EAW’s acoustic design and DSP mastery plus full Dante integration across the line, RADIUS delivers an intelligent and flexible system to fit any budget.

    Operating Range

    27 Hz to 125 Hz

    Nominal Beamwidth

    Horizontal 360°

    Vertical 360°

    Calculated Axial Output Limit (whole space SPL)

    Average: 129 dB (whole space), 135 dB (half space)

    Peak: 135 dB (whole space), 141 dB (half space)

    Input

    Type: Electronically balanced

    Max Input Level
    21dBu

    Impedance
    20 kOhm (balanced)

    Input Wiring
    XLRF, Pin 1 chassis, pin 2 +, pin 3 – separate loop-thru XLRM (for analog signal only)

    Input Selection
    Analog, Dante

    Amplifiers & Processing (LF)

    Type
    Modified Class D

    Maximum Output
    1400W

    Driver Protection
    Integral DSP limiting

    AC Mains (nominal)

    Connector
    Neutrik PowerCon®

    Input
    100 V to 240 V

    Frequency
    50 Hz to 60 Hz

    PowerConsumption
    Idle – 22W

    Peak Draw – 230 W

    Controls/Communication

    Connections
    2x Neutrik® etherCON™, RJ-45

    Protocols
    Ethernet/Dante

    Software
    EAWmosaic™ (available on the App Store)

    Indicators
    LCD Screen on amplifier panel for UI, Logo LED (User-definable behavior)

    User Controls
    Push-button Rotary Encoder
