Article number 1398834

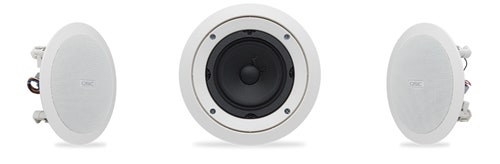

QSC AC-C4T nb

QSC AC-C4T nb no back can


Priced individually but must be purchased in quantities of four (4).

  • High quality transducers provide exceptional clarity through the critical voice range.
  • Improved musicality often not seen in typical BGM class products.
  • Low-saturation 70/100V transformers with 8-ohm bypass.
  • Advanced voicing via QSC Intrinsic Correction™, applied using the Q-SYS networking platform or CXD Series Amplifiers.

    SPECIFICATIONS

    • Transducer 100 mm [4 in.] weather resistant paper cone
    • Rated noise power [rms] 6 W
    • Nominal Impedance 8Ω
    • Transformer taps: 100V 6, 3, 1.5 W
    • Effective frequency range 62 Hz - 18 kHz
    • Rated Coverage 140° conical
    • Directivity Factor 4
    • Directivity Index [dB] 6
    • Sensitivity 93 dB
    • Maximum continuous SPL 101 dB
    • Maximum peak SPL 107 dB
    • Baffle material ABS
    • Grille material Powder coated steel
    • Cutout Dimensions Ø 178 mm [Ø 7 in]
    • Net weight 1.2 kg [2.6 lb]
    • Product dimensions (Diameter x Height) Ø 206 x 95 mm
