Article number 1398838

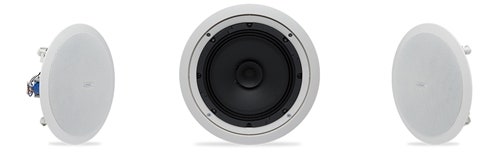

QSC AC-C8T-nb

QSC AC-C8T-nb no backcan


Priced individually but must be purchased in quantities of four (4).

  • High quality transducers provide exceptional clarity through the critical voice range.
  • Improved musicality often not seen in typical BGM class products.
  • Low-saturation 70/100V transformers with 8-ohm bypass.
  • Advanced voicing via QSC Intrinsic Correction™, applied using the Q-SYS networking platform or CXD Series Amplifiers.

    SPECIFICATIONS

    • Transducer 200 mm [8 in.] weather resistant paper cone
    • Rated noise power [rms] 6 W
    • Nominal Impedance 8Ω
    • Transformer taps: 100V 6, 3, 1.5 W
    • Effective frequency range 53 Hz - 18 kHz
    • Rated Coverage 130° conical
    • Directivity Factor 5.6
    • Directivity Index [dB] 7.5
    • Sensitivity 96 dB
    • Maximum continuous SPL 104 dB
    • Maximum peak SPL 110 dB
    • Baffle material ABS
    • Grille material Powder coated steel
    • Cutout Dimensions Ø 254 mm [Ø 10 in]
    • Net weight 1.5 kg [2.6 lb]
    • Product dimensions (Diameter x Height) Ø 283 x 84 mm
      Priced individually but must be purchased in quantities of four (4).
