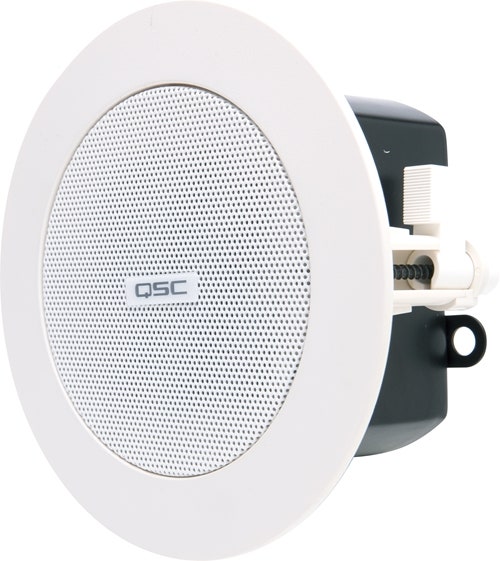

QSC AD-C.SAT White

Satellite 2,75" Ceiling Speaker White

The QSC AD-C.SAT is part of the AcousticDesign™ Series SUB/SAT loudspeaker line which are ideally suited for background music applications that require refined depth and clarity even at lower volume settings.

Priced individually but must be purchased in pairs.
    Specifications:
  • White
  • HF transducer: 2.75 in (70 mm) weather treated paper cone woofer
  • Effective frequency range: 150 Hz – 20 kHz
  • Rated noise power / voltage: 25 W / 20 V (rms)
  • Sensitivity [dB] (rated @1 W, 1 m): 82
  • Coverage (-6 dB): 170° Conical
  • Maximum SPL [dB] (continuous / peak): 90 / 96
  • Recommended amplifier: 25 W (with 1st order high-pass filter at 200 Hz)
  • Transformer taps / impedance Bypass: 16 Ω
  • Connector: 2-pole Euroblock connectors
  • Enclosure material: ABS baffle on powder coated steel back can
  • Grill material: Powder coated steel
  • Ingress protection: IP-34
  • Operating environment: Designed for indoor use
  • Operating temperature range: -20 to 50° C
  • Cutout dimension: Ø 115 mm
  • Net weight: 630 g
  • Included accessories: C-ring, Euroblock connector, cut-out template, grill (pair packed)
Article nr: 1393041

Product information


The QSC AD-C.SAT is part of the AcousticDesign™ Series SUB/SAT loudspeaker line which are ideally suited for background music applications that require refined depth and clarity even at lower volume settings.

Priced individually but must be purchased in pairs.
    Specifications:
  • White
  • HF transducer: 2.75 in (70 mm) weather treated paper cone woofer
  • Effective frequency range: 150 Hz – 20 kHz
  • Rated noise power / voltage: 25 W / 20 V (rms)
  • Sensitivity [dB] (rated @1 W, 1 m): 82
  • Coverage (-6 dB): 170° Conical
  • Maximum SPL [dB] (continuous / peak): 90 / 96
  • Recommended amplifier: 25 W (with 1st order high-pass filter at 200 Hz)
  • Transformer taps / impedance Bypass: 16 Ω
  • Connector: 2-pole Euroblock connectors
  • Enclosure material: ABS baffle on powder coated steel back can
  • Grill material: Powder coated steel
  • Ingress protection: IP-34
  • Operating environment: Designed for indoor use
  • Operating temperature range: -20 to 50° C
  • Cutout dimension: Ø 115 mm
  • Net weight: 630 g
  • Included accessories: C-ring, Euroblock connector, cut-out template, grill (pair packed)

Downloadable
