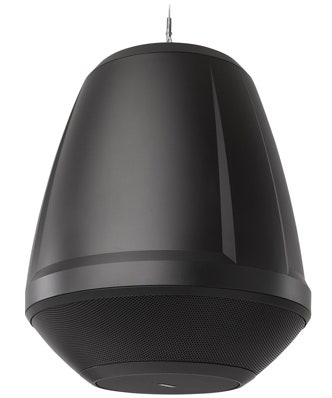

QSC AD-P.HALO-BK Black

Integrated SUB/SAT Pendant Loudspeaker System. Black

The QSC AD-P.HALO is a purpose-built, integrated SUB/SAT pendant loudspeaker system, featuring an integrated 6.5" subwoofer and four 2.75" satellite transducers in a single enclosure that is ready to install out of the box. Designed for business music installations where music drives the atmosphere, it features a 200 W RMS power rating with significant dynamic headroom that far surpasses the performance of traditional two-way, pendant-mount loudspeakers.
  • LF Transducer: 6.5 in (165.1 mm)
  • HF Transducer: 4x 2.75 in (69.85 mm)
  • Frequency range: 40 Hz - 20 kHz
  • Sensitivity: 86 dB
  • Rated noise power: 100 W
  • Max noise voltage: 24.5 V RMS
  • Coverage: 110° conical
  • Maximum SPL (continuous/peak): 105 / 111 dB
  • Nominal impedance: 6 Ω
  • Crossover frequency: 250 Hz (2nd order low-pass + 3rd order high-pass filters)
  • Transformer Taps: 100 V : 25, 50, 100
  • Port Tuning: 50 Hz
  • Input connectors: 4-pin male/female Euroblock with pass-thru and locking screws
  • Enclosure material: Injection-molded ABS baffle and enclosure
  • Grille material: Stamped steel, perforated and powder-coated
  • Product dimensions: Diameter: 339.8 (mm) Height: 433 (mm)
  • Shipping Dimensions (W x D x H): 535 x 445 x 435 (mm)
  • Net weight: 22.5 kg
  • Shipping Weight: 27.6 kg
  • Article nr: 1393110

    Product information

    AcousticDesign™ pendant-mount loudspeakers are two-way loudspeakers ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize 70/100V or 16Ω bypass configurations.

    The QSC AD-P.HALO is a purpose-built, integrated SUB/SAT pendant loudspeaker system, featuring an integrated 6.5" subwoofer and four 2.75" satellite transducers in a single enclosure that is ready to install out of the box. Designed for business music installations where music drives the atmosphere, it features a 200 W RMS power rating with significant dynamic headroom that far surpasses the performance of traditional two-way, pendant-mount loudspeakers.

  • LF Transducer: 6.5 in (165.1 mm)
  • HF Transducer: 4x 2.75 in (69.85 mm)
  • Frequency range: 40 Hz - 20 kHz
  • Sensitivity: 86 dB
  • Rated noise power: 100 W
  • Max noise voltage: 24.5 V RMS
  • Coverage: 110° conical
  • Maximum SPL (continuous/peak): 105 / 111 dB
  • Nominal impedance: 6 Ω
  • Crossover frequency: 250 Hz (2nd order low-pass + 3rd order high-pass filters)
  • Transformer Taps: 100 V : 25, 50, 100
  • Port Tuning: 50 Hz
  • Input connectors: 4-pin male/female Euroblock with pass-thru and locking screws
  • Enclosure material: Injection-molded ABS baffle and enclosure
  • Grille material: Stamped steel, perforated and powder-coated
  • Product dimensions: Diameter: 339.8 (mm) Height: 433 (mm)
  • Shipping Dimensions (W x D x H): 535 x 445 x 435 (mm)
  • Net weight: 22.5 kg
  • Shipping Weight: 27.6 kg

  • Downloadable
