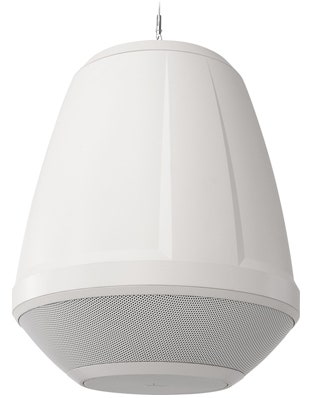

QSC AD-P.HALO-WH White
Integrated SUB/SAT Pendant Loudspeaker System. White
Article number 1393111
The QSC AD-P.HALO is a purpose-built, integrated SUB/SAT pendant loudspeaker system, featuring an integrated
6.5" subwoofer and four 2.75" satellite transducers in a single enclosure that is ready to install out of the box.
Designed for business music installations where music drives the atmosphere, it features a 200 W RMS power
rating with significant dynamic headroom that far surpasses the performance of traditional two-way, pendant-mount loudspeakers.
LF Transducer: 6.5 in (165.1 mm)
HF Transducer: 4x 2.75 in (69.85 mm)
Frequency range: 40 Hz - 20 kHz
Sensitivity: 86 dB
Rated noise power: 100 W
Max noise voltage: 24.5 V RMS
Coverage: 110° conical
Maximum SPL (continuous/peak): 105 / 111 dB
Nominal impedance: 6 Ω
Crossover frequency: 250 Hz (2nd order low-pass + 3rd order high-pass filters)
Transformer Taps: 100 V : 25, 50, 100
Port Tuning: 50 Hz
Input connectors: 4-pin male/female Euroblock with pass-thru and locking screws
Enclosure material: Injection-molded ABS baffle and enclosure
Grille material: Stamped steel, perforated and powder-coated
Product dimensions: Diameter: 339.8 (mm) Height: 433 (mm)
Shipping Dimensions (W x D x H): 535 x 445 x 435 (mm)
Net weight: 22.5 kg
Shipping Weight: 27.6 kg
