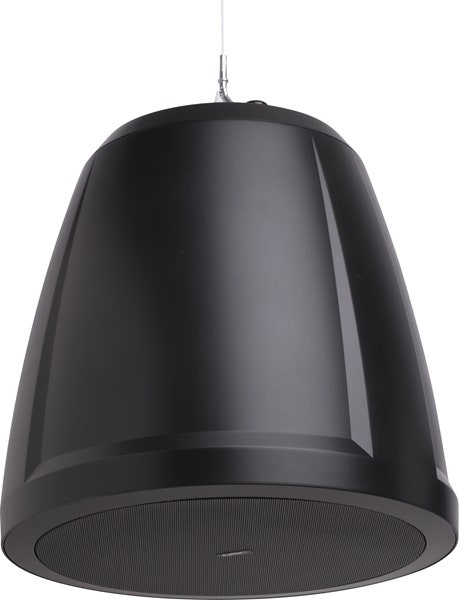

QSC AD-P.SUB Black

Pendant 6,5" Subwoofer - Black

The QSC AD-P.SUB is part of the AcousticDesign™ Series SUB/SAT loudspeaker line which are ideally suited for background music applications that require refined depth and clarity even at lower volume settings. Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications.


  • Refined depth and clarity even at low volume settings
  • Mix-and-match match capable, any subwoofer with any satellite in the AD Series SUB/SAT line
  • Dual voice coil for improved thermal dissipation and higher output
  • Low-saturation and low-loss 70 / 100 V transformers with 4 Ω bypass
  • Snap-fit magnetic grill
  • 4x built-in high-pass filtered outputs
  • Locking 4-pole Euroblock connectors
  • 2x quick link cable assemblies an slip-lock fasteners supplied
  • Removable logo
  • Intrinsic Correction™ voicings available via MP-M Series mixers and the Q-SYS Platform, including CXD-Q Series amplifiers
  • Available in black (RAL 9011) or white (RAL 9010)
  • Complete EASE, CF2, CAD, & BIM information available online
  • UL1480 certified
    Specifications:
  • LF transducer: 6.5 in (165 mm) dual voice-coil weather treated paper cone woofer
  • Effective frequency range: 55 Hz – 150 Hz
  • Rated noise power / voltage: 100 W / 20 V (rms)
  • Sensitivity [dB] (rated @1 W, 1 m): 86
  • Coverage (-6 dB): Omni
  • Maximum SPL [dB] (continuous / peak): 100 / 106
  • Recommended amplifier: 100 W
  • Transformer taps / impedance: Bypass:4 Ω 100 W (70 V); NA (100 V) Tap: 50 Ω 50 W (70 V); 100 W (100 V) Tap: 100 Ω 25 W (70 V); 50 W (100 V) Tap: 200 Ω 12.5 W (70 V); 25 W (100 V) Tap: 400 Ω
  • Connectors Mono input: 4-pole Euroblock with thru output Hi-pass mono output: 2x 4-pole Euroblock for 4x satellites
  • Enclosure material: ABS
  • Grill material: Powder coated steel
  • Ingress protection IP-34
  • Operating environment Designed for indoor use
  • Operating temperature range: -20 to 50° C
  • Net weight: 7.5 kg
  • Product dimensions (Ø x H): Ø 4.3 x 4.5 mm
  • Included accessories: 2x cable rigging, 3x Euroblock connector, 2x sealed input cover, grill
  • Safety agency: UL1480 Transformer UL registered per UL1876, ROHS, CE compliant.
Article nr: 1393090

Product information


The QSC AD-P.SUB is part of the AcousticDesign™ Series SUB/SAT loudspeaker line which are ideally suited for background music applications that require refined depth and clarity even at lower volume settings. Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications.


  • Refined depth and clarity even at low volume settings
  • Mix-and-match match capable, any subwoofer with any satellite in the AD Series SUB/SAT line
  • Dual voice coil for improved thermal dissipation and higher output
  • Low-saturation and low-loss 70 / 100 V transformers with 4 Ω bypass
  • Snap-fit magnetic grill
  • 4x built-in high-pass filtered outputs
  • Locking 4-pole Euroblock connectors
  • 2x quick link cable assemblies an slip-lock fasteners supplied
  • Removable logo
  • Intrinsic Correction™ voicings available via MP-M Series mixers and the Q-SYS Platform, including CXD-Q Series amplifiers
  • Available in black (RAL 9011) or white (RAL 9010)
  • Complete EASE, CF2, CAD, & BIM information available online
  • UL1480 certified
    Specifications:
  • LF transducer: 6.5 in (165 mm) dual voice-coil weather treated paper cone woofer
  • Effective frequency range: 55 Hz – 150 Hz
  • Rated noise power / voltage: 100 W / 20 V (rms)
  • Sensitivity [dB] (rated @1 W, 1 m): 86
  • Coverage (-6 dB): Omni
  • Maximum SPL [dB] (continuous / peak): 100 / 106
  • Recommended amplifier: 100 W
  • Transformer taps / impedance: Bypass:4 Ω 100 W (70 V); NA (100 V) Tap: 50 Ω 50 W (70 V); 100 W (100 V) Tap: 100 Ω 25 W (70 V); 50 W (100 V) Tap: 200 Ω 12.5 W (70 V); 25 W (100 V) Tap: 400 Ω
  • Connectors Mono input: 4-pole Euroblock with thru output Hi-pass mono output: 2x 4-pole Euroblock for 4x satellites
  • Enclosure material: ABS
  • Grill material: Powder coated steel
  • Ingress protection IP-34
  • Operating environment Designed for indoor use
  • Operating temperature range: -20 to 50° C
  • Net weight: 7.5 kg
  • Product dimensions (Ø x H): Ø 4.3 x 4.5 mm
  • Included accessories: 2x cable rigging, 3x Euroblock connector, 2x sealed input cover, grill
  • Safety agency: UL1480 Transformer UL registered per UL1876, ROHS, CE compliant.
