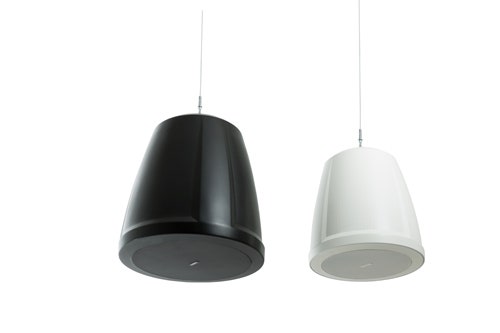

AcousticDesign™ pendant-mount loudspeakers are two-way loudspeakers ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize 70/100V or 16Ω bypass configurations.
The new AcousticDesign™ pendant series brings Directivity Matched Transition™ (DMT) to pendant install applications.
Utilizing the DMT design philosophy across all surface, ceiling, and pendant platforms allows AcousticDesign to achieve remarkably consistent tonal characteristics within blended installations.
AcousticDesign is positioned as our premium loudspeaker offering with best in class performance.
Consistent tonal characteristics accross all surface, ceiling, and pendant applications
150° conical DMT coverage
Snap-fit magnetic grille attachment
2x suspension cables and slip lock fasteners
Low saturation 70/100V transformers with 16Ω Bypass
• Taps: 30, 15, 7.5, 3.75 watts
UL-1480, and CE compliant.
Advanced Intrinsic Correction™ voicing via Q-SYS or CXD amplifier platforms
Effective frequency range: 65 Hz – 20 kHz
Rated noise power / voltage: 60 watts / 31 volts (rms)
Sensitivity [dB] : 88
Rated coverage (-6 dB) : 150° conical DMT™
Directivity factor: 6.5
Directivity index [dB] : 8
Maximum continuous SPL [dB] : 102
Maximum peak SPL [dB] : 108
Nominal impedance [ohms] : 16
Transformer taps 100v: 16Ω (in bypass setting)7,5w, 15w, 30w,
LF transducer: 165 mm [6.5 in] weather treated paper cone woofer
HF transducer: 19 mm [0.75" in] aluminum dome tweeter
Input connector type: Euroblock connector with parallel output
Enclosure material: Impact Resistant ABS
Grille material: Powder coated steel
Ingress protection: IP-34
Operating environment: Designed for indoor use
Operating temperature range: -20 to 50° C [-4 to 122° F]
Net weight: 3.9 kg [11.8 lb]
Product dimensions (Diameter x Height) : Ø 298 x 362 x 286 mm [11.75 x 14.25 x 11.25 in]
