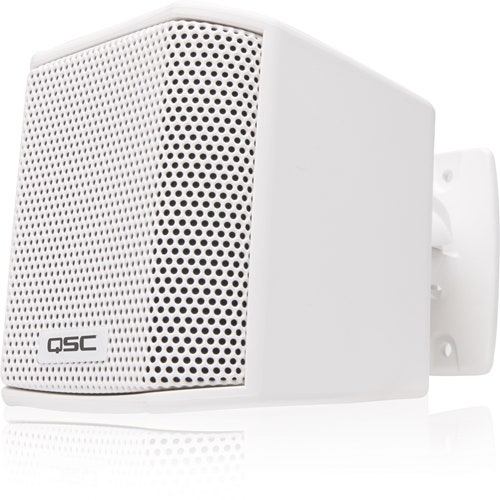

QSC AD-S.SAT White

Surface 2,75" Satellite Speaker White

Article number 1393061

Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications Priced individually but must be purchased in pairs.
  • Refined depth and clarity even at low volume settings
  • Mix-and-match capable, any subwoofer with any satellite in the AD Series SUB/SAT line
  • Inverted aluminum dome dust cap
  • Rated at 16 Ω
  • Locking 2-pole Euroblock connectors
  • Removable logo
  • X-Mount™ Mini mounting hardware provides repeatable angles without drift or sag
  • Intrinsic Correction™ voicings available via MP-M Series mixers and the Q-SYS Platform, including CXD-Q Series amplifiers
    Specifications:
  • HF transducer: 2.75 in (70 mm) weather treated paper cone woofer
  • Effective frequency range: 150 Hz – 20 kHz
  • Rated noise power / voltage: 25 W / 20 V (rms)
  • Sensitivity [dB] (rated @1 W, 1 m): 82
  • Coverage (-6 dB) [°]: 170° Conical
  • Maximum SPL [dB] (rated, 1 m (continuous / peak)): 90 / 96
  • Recommended amplifier: 25 W (with 1st order high-pass filter at 200 Hz)
  • Transformer taps / impedance: Bypass: 16 Ω
  • Connector: 2-pole Euroblock
  • Enclosure material: ABS
  • Grill material: Powder coated steel
  • Ingress protection: IP-34
  • Operating environment: Designed for indoor use
  • Operating temperature range: -20 to 50° C
  • Net weight: 433 g
  • Product dimensions including wall bracket (H x W x D): 92.5 x 89 x 136 mm
  • Included accessories: X-Mount Mini , Euroblock connector (pair packed)
