The E Series is a range of passive loudspeakers intended for sound reinforcement applications including live performance, DJ and dance music, karaoke and production. With continuous power ratings from 300 to 800 watts, E Series is a great match for QSC GXD and PLD amplifiers. While E Series speakers will perform well with any professional amplifier, QSC has developed custom DSP tunings for GXD and PLD amplifiers that will produce extraordinary results

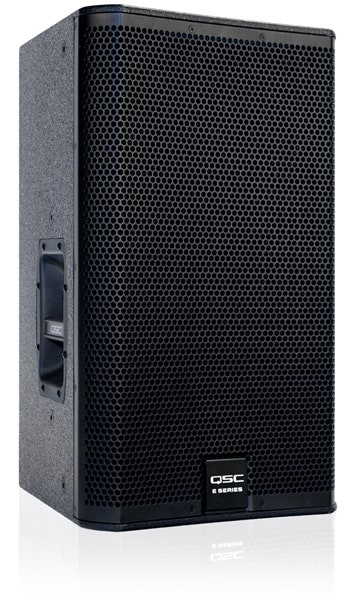

The E112 is a trapezoidal, two-way loudspeaker using a 12-inch die cast aluminum woofer with a 3-inch voice-coil. The 15mm, 11-ply enclosure provides enough volume to deliver solid low-frequency extension down to 65 Hz making it an excellent choice for applications in which space or budget preclude the use of a subwoofer. The DMT coverage angle of 85° is ideal for most medium and medium-long throw applications.
- High output, professional quality sound with 400 W continuous power
- E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
- E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers:
- Rugged tour-grade textured paint
- Foam-lined perforated steel grill
- Available U-Style Yoke and M8 rigging kit for permanent installation
- Dual angle pole socket
- Configuration: 1 x 12-inch, 2-way, non-powered
- Frequency Response (-6 dB) 64 Hz – 20 kHz
- Frequency Range (-10 dB) 46 Hz – 20 kHz
- Power capacity: continuous/peak: 400 W / 1600 W
Sensitivity: 96 dB, 1 W @ 1 m
- Coverage Angle: 85° conical DMT
- Output: (peak SPL @ 1m): 128 dB
- Drivers: LF 305 mm (12-inch) driver with 76 mm (3-inch) voice coil ; HF: 25 mm (1-inch) exit, 45 mm (1.75-inch) voice coil, compression driver
- Nominal Impedance: 8Ω
- Cross-over: Full range only, 1.8 kHz
- Input Connections: 2 x NL4, 1 x barrier strip
- Enclosure: Trapezoidal, plywood, black texture paint finish. Two side-mounted handles. Perforated, powder-coated steel grille with foam lining.
- Dimensions: (WxHxD) 360 x 616 x 371 mm
- Net Weight: 23 kg
- Shipping Weight: 26 kg
