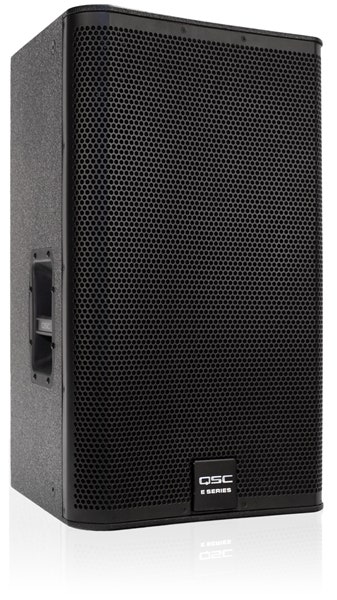

QSC E115 Passive Speaker

QSC

15" High output Passive Speaker – 2000 W

The E115 is a trapezoidal, two-way loudspeaker using a 15-inch, 500W, die cast aluminum frame woofer with a 3.5-inch voice coil. It is intended for use when high-power and authoritative low-end are needed from a full-range loudspeaker. A 2.8” compression driver attached to the 75° DMTTM waveguide assures that even distant listeners will be well covered.

  • High output, professional quality sound with 500 W continuous power
  • E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
  • E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers:
  • Rugged tour-grade textured paint
  • Foam-lined perforated steel grill
  • Available U-Style Yoke and M8 rigging kit for permanent installation
  • Dual angle pole socket
  • Configuration: 1 x 15-inch, 2-way, non-powered
  • Frequency Response (-6 dB) 55 Hz – 20 kHz
  • Frequency Range (-10 dB) 43 Hz – 20 kHz
  • Power capacity: continuous/peak: 500 W / 2000 W Sensitivity: 97 dB, 1 W @ 1 m
  • Coverage Angle: 75° conical DMT
  • Output: (peak SPL @ 1m): 130 dB
  • Drivers: LF 381 mm (12-inch) driver with 89 mm (3,5-inch) voice coil ; HF: 38 mm (1.5-inch) exit, 71 mm (2.8-inch) voice coil, compression driver
  • Nominal Impedance: 8Ω
  • Cross-over: Full range only, 1.44 kHz
  • Input Connections: 2 x NL4, 1 x barrier strip
  • Enclosure: Trapezoidal, plywood, black texture paint finish. Two side-mounted handles. Perforated, powder-coated steel grille with foam lining.
  • Dimensions: (WxHxD) 420 x 716 x 445 mm
  • Net Weight: 31 kg
  • Shipping Weight: 34 kg
Article nr: 1397364

Product information

The E Series is a range of passive loudspeakers intended for sound reinforcement applications including live performance, DJ and dance music, karaoke and production. With continuous power ratings from 300 to 800 watts, E Series is a great match for QSC GXD and PLD amplifiers. While E Series speakers will perform well with any professional amplifier, QSC has developed custom DSP tunings for GXD and PLD amplifiers that will produce extraordinary results

The E115 is a trapezoidal, two-way loudspeaker using a 15-inch, 500W, die cast aluminum frame woofer with a 3.5-inch voice coil. It is intended for use when high-power and authoritative low-end are needed from a full-range loudspeaker. A 2.8” compression driver attached to the 75° DMTTM waveguide assures that even distant listeners will be well covered.

  • High output, professional quality sound with 500 W continuous power
  • E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
  • E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers:
  • Rugged tour-grade textured paint
  • Foam-lined perforated steel grill
  • Available U-Style Yoke and M8 rigging kit for permanent installation
  • Dual angle pole socket
  • Configuration: 1 x 15-inch, 2-way, non-powered
  • Frequency Response (-6 dB) 55 Hz – 20 kHz
  • Frequency Range (-10 dB) 43 Hz – 20 kHz
  • Power capacity: continuous/peak: 500 W / 2000 W Sensitivity: 97 dB, 1 W @ 1 m
  • Coverage Angle: 75° conical DMT
  • Output: (peak SPL @ 1m): 130 dB
  • Drivers: LF 381 mm (12-inch) driver with 89 mm (3,5-inch) voice coil ; HF: 38 mm (1.5-inch) exit, 71 mm (2.8-inch) voice coil, compression driver
  • Nominal Impedance: 8Ω
  • Cross-over: Full range only, 1.44 kHz
  • Input Connections: 2 x NL4, 1 x barrier strip
  • Enclosure: Trapezoidal, plywood, black texture paint finish. Two side-mounted handles. Perforated, powder-coated steel grille with foam lining.
  • Dimensions: (WxHxD) 420 x 716 x 445 mm
  • Net Weight: 31 kg
  • Shipping Weight: 34 kg
