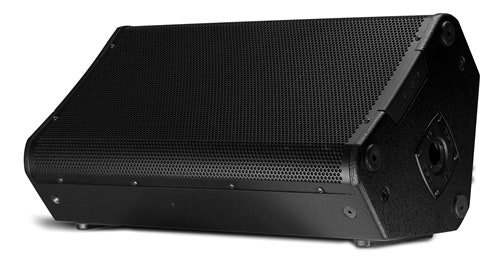

QSC AP-5122m

QSC

High power, multipurpose loudspeaker 12" + 3"

  • Frequency response (-10 dB) 55Hz to 18 kHz
  • Rated noise power / voltage 550 watts / 60 volts rms
  • Broadband sensitivity 95 dB SPL
  • Coverage angle 90˚ Axisymmetric
  • Maximum SPL at 1 m (passive) 122 dB continuous, 128 dB peak
  • Impedance 8Ω
  • Bi-Amp / Passive switchable
  • Input connector Covered barrier strip, NL4 connector
  • Enclosure material 15-ply Baltic birch plywood
  • Attachment points Fifteen M10 threaded inserts
  • Dimensions (H×W×D) 660 × 381 × 330 mm
  • Net weight 65 lb / 29.5 kg
  • Article nr: 1397422

    Product information

    AcousticPerformance™ is a line of professional, loudspeakers, ideal for a variety of installed sound reinforcement applications requiring high power in a stylish enclosure. DMT™ (Directivity Matched Transition) in 2-way models ensures smooth, coherent power response across the listening plane

  • Frequency response (-10 dB) 55Hz to 18 kHz
  • Rated noise power / voltage 550 watts / 60 volts rms
  • Broadband sensitivity 95 dB SPL
  • Coverage angle 90˚ Axisymmetric
  • Maximum SPL at 1 m (passive) 122 dB continuous, 128 dB peak
  • Impedance 8Ω
  • Bi-Amp / Passive switchable
  • Input connector Covered barrier strip, NL4 connector
  • Enclosure material 15-ply Baltic birch plywood
  • Attachment points Fifteen M10 threaded inserts
  • Dimensions (H×W×D) 660 × 381 × 330 mm
  • Net weight 65 lb / 29.5 kg

  • Accessories
