QSC E218SW

QSC

Dual 18” Passive Subwoofer

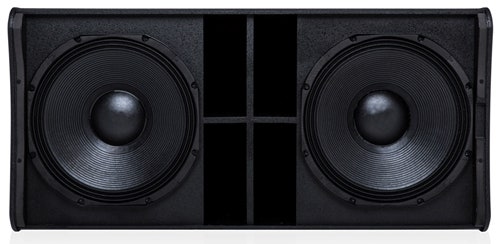

The E218sw is a high-performance direct radiation subwoofer with two, 800W, 18-inch, aluminum frame woofers. It’s designed to produce crushing low-end for live performance with kick-drum and bass in the PA or for high-level, high-energy dance music. For portable applications it includes attachment points for four optional casters. The subwoofer’s 4-ohm impedance means that a single cabinet can be optimally powered by a less expensive amplifier.

  • High output, professional quality sound with 1600 W continuous power
  • E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
  • E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers.
  • Rugged tour-grade textured paint
  • Foam-lined perforated steel grill
  • Optional Padded Cover for protection during transportation
  • Optional Caster Kit for greater portability

    Specifications

  • Configuration: 2 x 18-inch, subwoofer non powered
  • Frequency Range (-10 dB) 32 Hz - 230 Hz
  • Power capacity: continuous/peak 1600 W / 6400 W
  • Sensitivity: 101 dB, 1 W @ 1 m
  • Output (peak SPL @ 1 m) 136 dB
  • Drivers: 2 x 457 mm (18-inch) driver with 102 mm (4-inch) voice coil
  • Nominal Impedance 4Ω
  • Cross-over: Recommended 80 – 120 Hz LPF
  • Input connectors: 2 x NL4, 1 x barrier strip
  • Enclosure: 11-ply, black texture paint finish. Perforated, powder-coated steel grille with foam lining.
  • Gross weight: 83.2 kg
  • Net speaker weight: 76.4 kg
  • Dimensions:(WxHxD)1180 x 616 x 640 mm
Article nr: 1397369

Product information

The E Series is a range of passive loudspeakers intended for sound reinforcement applications including live performance, DJ and dance music, karaoke and production. With continuous power ratings from 300 to 800 watts, E Series is a great match for QSC GXD and PLD amplifiers. While E Series speakers will perform well with any professional amplifier, QSC has developed custom DSP tunings for GXD and PLD amplifiers that will produce extraordinary results

The E218sw is a high-performance direct radiation subwoofer with two, 800W, 18-inch, aluminum frame woofers. It’s designed to produce crushing low-end for live performance with kick-drum and bass in the PA or for high-level, high-energy dance music. For portable applications it includes attachment points for four optional casters. The subwoofer’s 4-ohm impedance means that a single cabinet can be optimally powered by a less expensive amplifier.

  • High output, professional quality sound with 1600 W continuous power
  • E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
  • E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers.
  • Rugged tour-grade textured paint
  • Foam-lined perforated steel grill
  • Optional Padded Cover for protection during transportation
  • Optional Caster Kit for greater portability

    Specifications

  • Configuration: 2 x 18-inch, subwoofer non powered
  • Frequency Range (-10 dB) 32 Hz - 230 Hz
  • Power capacity: continuous/peak 1600 W / 6400 W
  • Sensitivity: 101 dB, 1 W @ 1 m
  • Output (peak SPL @ 1 m) 136 dB
  • Drivers: 2 x 457 mm (18-inch) driver with 102 mm (4-inch) voice coil
  • Nominal Impedance 4Ω
  • Cross-over: Recommended 80 – 120 Hz LPF
  • Input connectors: 2 x NL4, 1 x barrier strip
  • Enclosure: 11-ply, black texture paint finish. Perforated, powder-coated steel grille with foam lining.
  • Gross weight: 83.2 kg
  • Net speaker weight: 76.4 kg
  • Dimensions:(WxHxD)1180 x 616 x 640 mm
