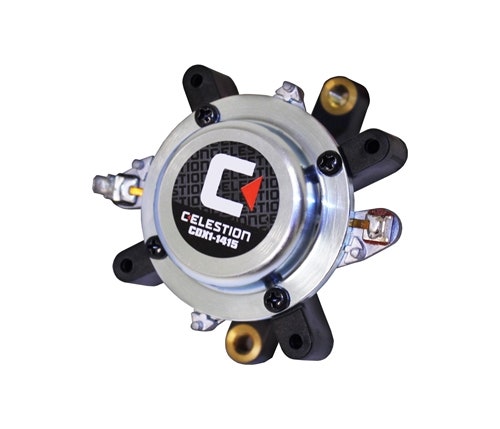

Celestion CDX1-1415 8R

CELESTION

1" exit, neodymium magnet, 1,4" voice coil compression driver. 20W RMS 104dB, 8ohm

1.4" copper clad aluminium voice coil

Copper sleeve on pole reduces inductive rise for improved HF performance

Ferrofluid in magnet gap prevents sensitivity loss through thermal compression

Aluminium diaphragm combined with elastomer surround delivers lower distortion performance

Compact pot magnet design reduces weight and minimises stray flux

Suitable for 2-way and 3-way systems

  • Power rating: 20W RMS
  • Nominal impedance: 8ohm
  • Frequency range: 2000-20,000Hz
  • Sensitivity: 104dB
  • Recommended min. crossover: 2500Hz (12dB/oct)
  • Voice coil diameter: 35mm/1.4in
  • Voice coil material: Copper clad aluminium
  • Diaphragm material: Aluminium
  • Surround material: Elastomer
  • Overall width: 90mm/3.54in
  • Overall depth: 57mm/2.2in
  • Fitting:Flange (2 x M6 holes on 76mm, 3.0in PCD
  • Throat exit: 25,4mm/1.0in
  • Unit weight: 0.25kg/0.6lb
Article nr: 2213343

Product information

Together, Celestion’s ferrite and neodymium magnet compression drivers create an extremely comprehensive product range, providing professional audio systems builders with optimised high frequency performance at every price point.


1.4" copper clad aluminium voice coil

Copper sleeve on pole reduces inductive rise for improved HF performance

Ferrofluid in magnet gap prevents sensitivity loss through thermal compression

Aluminium diaphragm combined with elastomer surround delivers lower distortion performance

Compact pot magnet design reduces weight and minimises stray flux

Suitable for 2-way and 3-way systems

  • Power rating: 20W RMS
  • Nominal impedance: 8ohm
  • Frequency range: 2000-20,000Hz
  • Sensitivity: 104dB
  • Recommended min. crossover: 2500Hz (12dB/oct)
  • Voice coil diameter: 35mm/1.4in
  • Voice coil material: Copper clad aluminium
  • Diaphragm material: Aluminium
  • Surround material: Elastomer
  • Overall width: 90mm/3.54in
  • Overall depth: 57mm/2.2in
  • Fitting:Flange (2 x M6 holes on 76mm, 3.0in PCD
  • Throat exit: 25,4mm/1.0in
  • Unit weight: 0.25kg/0.6lb
