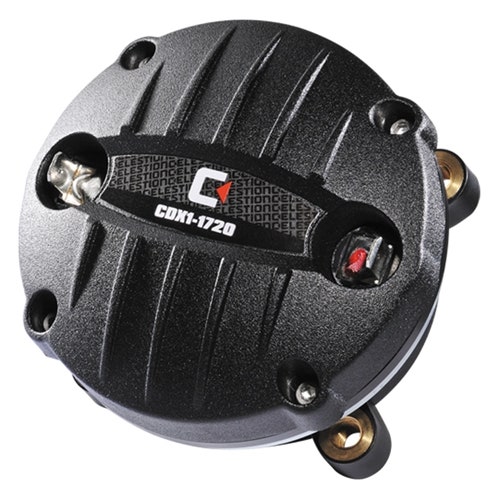

Celestion CDX1-1720 8R

CELESTION

1" exit, neodymium magnet, 1,75" voice coil compression driver. 50W RMS 107dB, 8ohm

Lightweight and compact compression driver featuring neodymium magnet and 1.75" diameter titanium diaphragm

Rolled polyimide surround improves stiffness control, further lowering distortion

Lower resonance enabling lower crossover frequency

Patented phase plug design method suppresses cavity resonances at frequencies higher than that of conventional designs.

Lower compression ratio reduces air non-linearity and allows for higher maximum SPL

Curved coherent wavefront, optimised for horn loading

  • Power rating: 50W RMS
  • Nominal impedance: 8ohm
  • Frequency range: 800-20,000Hz
  • Sensitivity: 107dB
  • Recommended min. crossover: 1500Hz (12dB/oct)
  • Voice coil diameter: 44mm/1.75in
  • Diaphragm material: Titanium
  • Surround material: Polymide
  • Overall width: 90mm/3.54in
  • Overall depth: 55mm/2.3in
  • Fitting:Flange (4 x M6 holes on 76mm, 3.0in PCD
  • Throat exit: 25,4mm/1.0in
  • Unit weight: 0,65kg/1.4lb
Article nr: 2213713

Product information

Together, Celestion’s ferrite and neodymium magnet compression drivers create an extremely comprehensive product range, providing professional audio systems builders with optimised high frequency performance at every price point.


Lightweight and compact compression driver featuring neodymium magnet and 1.75" diameter titanium diaphragm

Rolled polyimide surround improves stiffness control, further lowering distortion

Lower resonance enabling lower crossover frequency

Patented phase plug design method suppresses cavity resonances at frequencies higher than that of conventional designs.

Lower compression ratio reduces air non-linearity and allows for higher maximum SPL

Curved coherent wavefront, optimised for horn loading

  • Power rating: 50W RMS
  • Nominal impedance: 8ohm
  • Frequency range: 800-20,000Hz
  • Sensitivity: 107dB
  • Recommended min. crossover: 1500Hz (12dB/oct)
  • Voice coil diameter: 44mm/1.75in
  • Diaphragm material: Titanium
  • Surround material: Polymide
  • Overall width: 90mm/3.54in
  • Overall depth: 55mm/2.3in
  • Fitting:Flange (4 x M6 holes on 76mm, 3.0in PCD
  • Throat exit: 25,4mm/1.0in
  • Unit weight: 0,65kg/1.4lb
