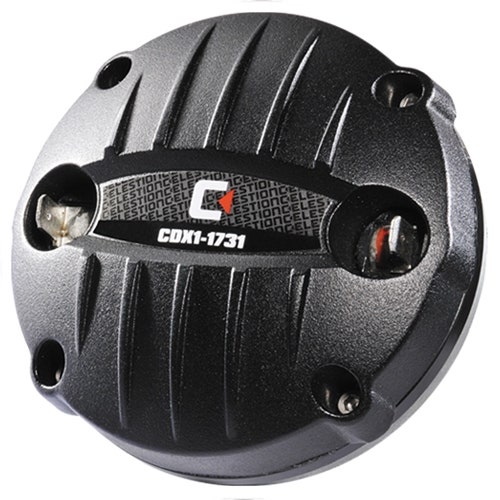

Celestion CDX1-1731 8R

CELESTION

1" exit, neodymium magnet, 1,75" voice coil compression driver with screwfitting. 40W RMS 110dB, 8ohm

Neodymium magnet compression driver with 1.75" edgewound copper clad aluminium voice coil

Designed with Sound Castle™ clamping to ensure uniform pressure on diaphragm assembly for reduced acoustic distortion

One piece PETP film diaphragm and surround

Advanced Finite Element Analysis (FEA) tools used to create a very light weight, high powered compression driver

  • Power rating: 40W RMS
  • Nominal impedance: 8ohm
  • Frequency range: 1200-20,000Hz
  • Sensitivity: 110dB
  • Recommended min. crossover: 2200Hz (12dB/oct)
  • Voice coil diameter: 44mm/1.75in
  • Diaphragm material: PETP Film
  • Surround material: PETP Film
  • Overall width: 90mm/3.54in
  • Overall depth: 55mm/2.3in
  • Fitting:Screw (35mm, 1.38in
  • Throat exit: 25,4mm/1.0in
  • Unit weight: 0,65kg/1.4lb
Article nr: 2213486

Product information

Together, Celestion’s ferrite and neodymium magnet compression drivers create an extremely comprehensive product range, providing professional audio systems builders with optimised high frequency performance at every price point.


Neodymium magnet compression driver with 1.75" edgewound copper clad aluminium voice coil

Designed with Sound Castle™ clamping to ensure uniform pressure on diaphragm assembly for reduced acoustic distortion

One piece PETP film diaphragm and surround

Advanced Finite Element Analysis (FEA) tools used to create a very light weight, high powered compression driver

  • Power rating: 40W RMS
  • Nominal impedance: 8ohm
  • Frequency range: 1200-20,000Hz
  • Sensitivity: 110dB
  • Recommended min. crossover: 2200Hz (12dB/oct)
  • Voice coil diameter: 44mm/1.75in
  • Diaphragm material: PETP Film
  • Surround material: PETP Film
  • Overall width: 90mm/3.54in
  • Overall depth: 55mm/2.3in
  • Fitting:Screw (35mm, 1.38in
  • Throat exit: 25,4mm/1.0in
  • Unit weight: 0,65kg/1.4lb
