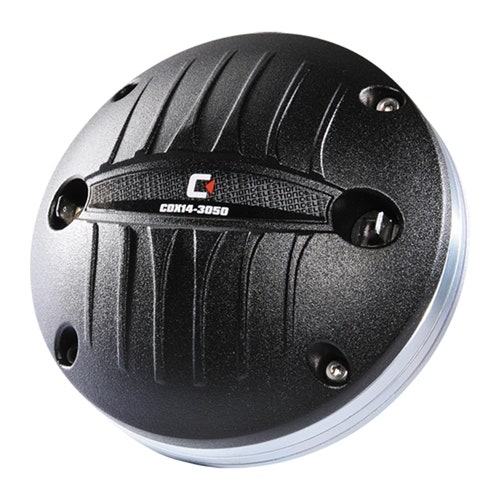

Celestion CDX14-3050 8R

CELESTION

1.4" exit, ferrite magnet, 3" voice coil compression driver. 70W RMS 106.5dB, 8ohm

Patented phase plug design method suppresses cavity resonances at higher frequencies

Titanium diaphragm, deep drawn to increase stiffness and reduce distortion

Lower compression ratio reduces air non-linearity and allows for higher maximum SPL

Rolled polyimide surround improves stiffness control, further lowering distortion

Curved coherent wavefront, optimised for horn loading

  • Power rating: 75W RMS
  • Nominal impedance: 8ohm
  • Frequency range: 500-20,000Hz
  • Sensitivity: 106,5dB
  • Recommended min. crossover: 1000Hz (12dB/oct)
  • Voice coil diameter: 75mm/3in
  • Diaphragm material: Titanium
  • Surround material: Polymide
  • Overall width: 125mm/5in
  • Overall depth: 56mm/2.2in
  • Fitting: Flange (4 x M6 holes on 102mm/4in PCD
  • Throat exit: 35,6mm/1.4in
  • Unit weight: 1,7kg/3.7lb
Article nr: 2213640

Product information

Together, Celestion’s ferrite and neodymium magnet compression drivers create an extremely comprehensive product range, providing professional audio systems builders with optimised high frequency performance at every price point.


Patented phase plug design method suppresses cavity resonances at higher frequencies

Titanium diaphragm, deep drawn to increase stiffness and reduce distortion

Lower compression ratio reduces air non-linearity and allows for higher maximum SPL

Rolled polyimide surround improves stiffness control, further lowering distortion

Curved coherent wavefront, optimised for horn loading

  • Power rating: 75W RMS
  • Nominal impedance: 8ohm
  • Frequency range: 500-20,000Hz
  • Sensitivity: 106,5dB
  • Recommended min. crossover: 1000Hz (12dB/oct)
  • Voice coil diameter: 75mm/3in
  • Diaphragm material: Titanium
  • Surround material: Polymide
  • Overall width: 125mm/5in
  • Overall depth: 56mm/2.2in
  • Fitting: Flange (4 x M6 holes on 102mm/4in PCD
  • Throat exit: 35,6mm/1.4in
  • Unit weight: 1,7kg/3.7lb

Downloadable
