Article number 2213329

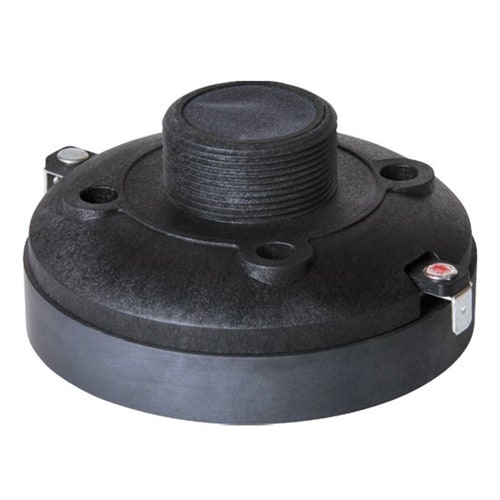

Celestion CDX1-1010 8R

1" exit, ferrite magnet, 1" voice coil compression driver. 15W RMS 107dB, 8ohm

Ideal for entry-level two-way and three-way sound reinforcement cabinets

Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design
  • Power rating: 15W RMS
  • Nominal impedance: 8ohm
  • Frequency range: 1500-20,000Hz
  • Sensitivity: 107dB
  • Recommended min. crossover: 2200Hz (12dB/oct)
  • Voice coil diameter: 25mm/1.0in
  • Voice coil material: Copper clad aluminium
  • Diaphragm and surround material: PETP film
  • Overall width: 90mm/3.54in
  • Overall depth: 52.8mm/2.08in
  • FittingScrew: (35mm/1.38in diameter)
  • Throat exit: 25mm/1.0in
  • Unit weight: 0.83kg/1.8ln
