VOX Hand-Wired AC30HWRH

Article number 8043047

30W guitar amplifier head. Tube configuration: 4 x ECC83/12AX7 (preamp), 1 x ECC81/12AT7 (preamp), 4 x EL84 (power amp), 1 x GZ34 (rectifier). Spring reverb, Effects loop.

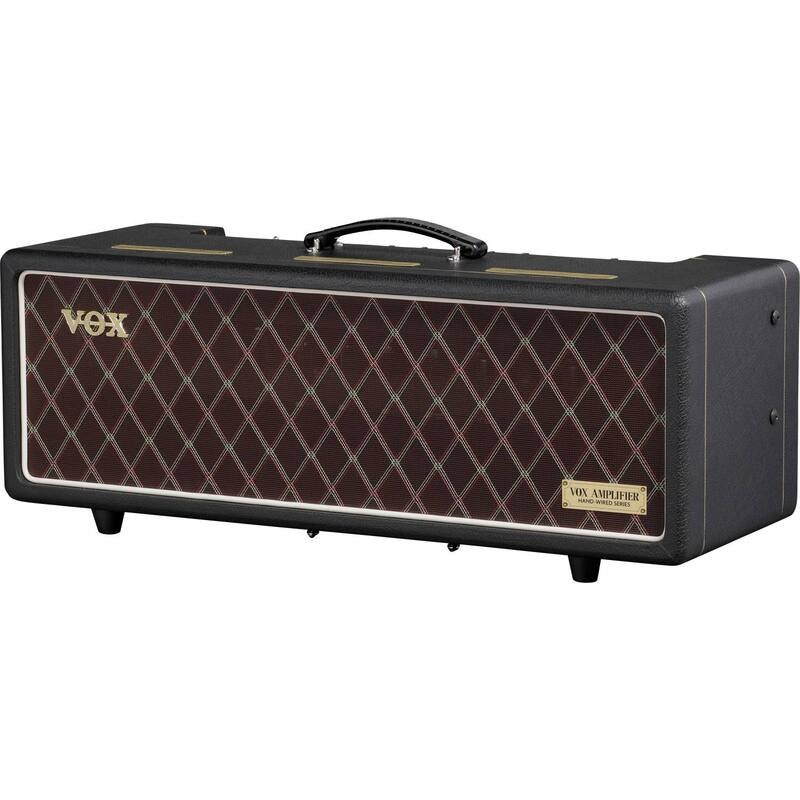

VOX AC30HWRH Hand-Wired Amplifier Head – Timeless Tone for Today

The VOX AC30HWRH Hand-Wired Head is a meticulous reconstruction of one of the most iconic amplifiers in music history. Built with hand-wired circuitry and vintage-accurate components, it brings the classic British tone of the ’60s back to life, now updated with modern features that make it ready for both stage and studio use.

Designed for players who demand authentic VOX sound in a flexible head format, this amplifier delivers the legendary British chime and harmonic complexity in a powerful 30-watt package. Whether paired with VOX’s matching V212HWRX cabinet or your preferred speaker setup, the AC30 Hand-Wired Head provides expressive tone and dynamic response with unmistakable VOX character.

Features

Hand-wired construction for authentic vintage response
Two channels: Normal with Bright switch and Top Boost with separate Treble, Bass, and Volume controls
Custom-wound output transformer capturing classic ’60s tonal nuances
Tube-driven spring reverb with Level and Tone controls plus footswitch
FET-buffered FX loop for transparent pedal integration, bypassable for pure tone
Master volume fully removed from circuit when engaged for true tube dynamics
Power supply designed to recreate authentic voltage sag for natural compression and sustain
30 watts of EL84 power tubes for stage-ready headroom and rich breakup
Classic VOX styling with copper control panel, brass vent grills, and iconic badge

Specifications

Power: 30W RMS into 8/16 Ω
Tubes: 4 × ECC83/12AX7 (preamp), 1 × ECC81/12AT7 (preamp), 4 × EL84 (power), 1 × GZ34 (rectifier)
Inputs: Normal and Top Boost (High and Low), Footswitch, Return (FX loop)
Outputs: Speaker (2 × ¼" jacks), Send (FX loop)
Dimensions (W×D×H): 705 × 263 × 302 mm
Weight: 19.7 kg
Included: Power cable, owner’s manual, VFS1 footswitch, speaker cable

FAQ

How does the AC30 Hand-Wired Head differ from other VOX AC30 models?
It features painstakingly hand-wired circuits and custom transformers that recreate the original 1963 "copper panel" tone, along with modern improvements like a transparent FX loop and master volume bypass.

Is it suitable for live performances?
Absolutely. With 30 watts of EL84 power and flexible speaker outputs, it delivers both headroom and the iconic VOX breakup perfect for stage use.

Does the amplifier maintain the classic VOX feel?
Yes, the design preserves the harmonic richness, touch sensitivity, and musical dynamics that define vintage VOX amps, making it ideal for vintage enthusiasts and modern players alike.
