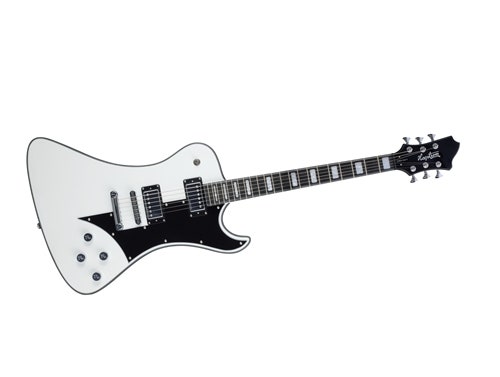

Fantomen (Swedish for “The Phantom”) transports Hagstrom’s legendary playability and technical excellence into a new, edgier realm. We started with an elegantly asymmetrical solid-mahogany body to which we have joined a mahogany neck using our classic mortise-and-tenon neck joint system.
Of course, since it’s a Hagstrom, the Fantomen uses our H-Expander® truss rod and Resinator® fingerboard, providing the ultimate in playing surface stability and optimal tonal enhancement. Together these components create an incredibly stable, resonant and responsive sonic foundation.
With a relatively thin 1¼” (3.5cm) body, the Fantomen is beautifully balanced and surprisingly lightweight. A 25.5” (648mm) scale provides a slightly sharper attack amd more sustain than classic 24.75” scale guitars. A neck joint design that provides total, unrestricted access to all 22 frets will meet the needs of even the most virtuosic player.The goal was to equip the Fantomen with electronics that would allow for a varied tonal pallet ranging from classic, vintage colors to screaming metallic brilliance.
Hagstrom worked with Swedish pickup guru Johan Lundgren, designer of pickups used by artists such as Meshuggah’s Mårten Hagström (no relation!). Lundgren recommended two different humbucker designs: No. 2 in the neck position and No. 5 in the bridge position. The result covers an immense expressive range; from smooth, warm tones to the kind of attack and intense dynamic output that would satisfy the demands of even the most extreme musical styles. Each pickup can be split to single-coil mode by means of push/pull switches incorporated into the tone controls for even more sonic flexibility. This guitar speaks with many distinct voices.
Single Cutaway - Asymettrical Design
All Mahogany Construction
Set Neck - Mahogany - Slim “D” Profile
H-Expander™ Truss Rod
Resinator™ Fingerboard / 25.5” (648mm) Scale Length
Pearloid Block Inlays
22 Medium Jumbo Frets / 15” Radius
GraphTech Black Tusq XL Nut / 43mm
Lundgren Design AlNiCo-2 No. 2 Humbucker - Neck Position
Lundgren Design AlNiCo-5 No. 5 Humbucker - Bridge Position
3-Way Toggle Switch Pickup Selector
2 x Volume Control with R/C Circuit
2 x Tone Control with Push-Pull Coil Split
Long Throw Tune-O-Matic Bridge with Stop Tail Piece
Hagstrom 18:1 Chrome Die Cast Tuners
D’Addario (10-46) Strings
Optional (not included): C-47 Case / E-19 Gig-bag
