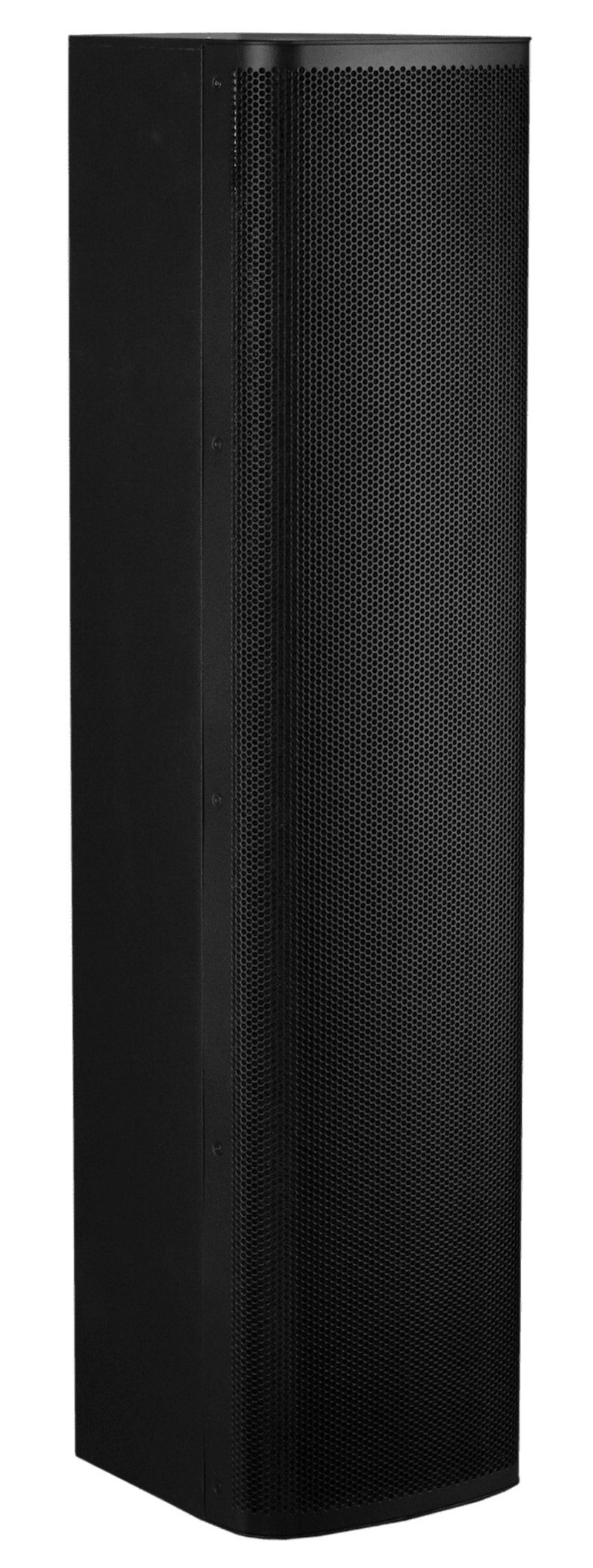

EAW AC6-BLACK Adaptive Column Speaker



AC6 is an adaptive column loudspeaker fit for portable and installed applications whenever high-performance music amplification is required.
Each AC6 is comprised of six 6” woofers and thirty 1” dome tweeters mounted to a CSA waveguide. Each transducer is individually amplified and processed for an unprecedented level of control and clarity.

Adaptive technology allows vertical coverage to be perfectly customized to your venue across the entire 20KHz to 65Hz operating range resulting in even and musical coverage through the venue.
A modular design approach provides redundancy and full serviceability from the front of the unit making AC6 the easiest to service column loudspeaker available.
AC6 is designed to disappear visually while being rugged enough for portable use and carry an IP rating of IP54. All wiring is designed to be hidden behind the column and can be passed through to columns above or below it.

Unlike competitors, AC6 does not utilize “beam forming” technology. EAW patented Adaptive technology allows vertical coverage to be precisely customized to your room and audience seating configuration resulting in consistent sound from the front to the back of coverage while keeping sound off reflective surfaces like walls and balcony faces.
Adaptive coverage is controlled through EAW’s award winning Resolution 2 software. When a computer is not available or impractical coverage presets can be recalled through the rear panel LCD screen and encoder or using the contact closures inputs located on the input panel.

Up to 10 AC6 can be arrayed to form up to a 32 foot (10 meter) tall column. Optilogic automatically detects each module’s location and angle in the array significantly reducing setup time and opportunity for errors.

• Frequency Response: 65Hz – 20kHz
• Max SPL: 143dB
• Operating Mode: 6 x LF, 30 x HF

Subsystem

• LF Transducer: Loading 6 x 6 in cone, 1.7 in voice coil vented (w/ CSA)
• HF Transducer: Loading 30 x 19mm dome tweeter, horn loaded
• Nominal Beamwidth: 120 ° Horizontal x Adaptive Vertical
• Power Handling: 600w

Connections

• Neutrik PowerCON® True1 Top
• Analog & AES In/Loop
• 2x Neutrik® etherCON™ (DANTE enabled)
• 2x XLRF, Pin 1 chassis, pin 2+, pin 3-
• 2x Separate Loop through XLRM (for analog signal only)
• Dimensions
• Height: 970mm
• Width: 239mm
• Depth: 236mm
• Weight: 32kg
