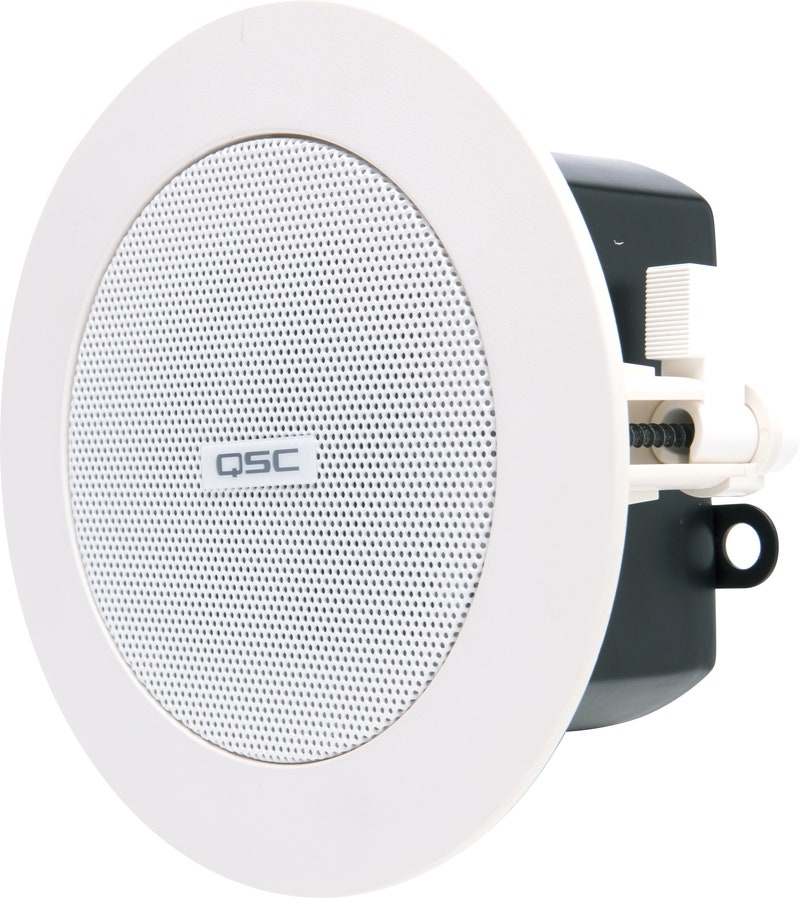

The QSC AD-C.SAT is part of the AcousticDesign™ Series SUB/SAT loudspeaker line which are ideally suited for background music applications that require refined depth and clarity even at lower volume settings.
Priced individually but must be purchased in pairs.-
Specifications:
- White
- HF transducer: 2.75 in (70 mm) weather treated paper cone woofer
- Effective frequency range: 150 Hz – 20 kHz
- Rated noise power / voltage: 25 W / 20 V (rms)
- Sensitivity [dB] (rated @1 W, 1 m): 82
- Coverage (-6 dB): 170° Conical
- Maximum SPL [dB] (continuous / peak): 90 / 96
- Recommended amplifier: 25 W (with 1st order high-pass filter at 200 Hz)
- Transformer taps / impedance Bypass: 16 Ω
- Connector: 2-pole Euroblock connectors
- Enclosure material: ABS baffle on powder coated steel back can
- Grill material: Powder coated steel
- Ingress protection: IP-34
- Operating environment: Designed for indoor use
- Operating temperature range: -20 to 50° C
- Cutout dimension: Ø 115 mm
- Net weight: 630 g
- Included accessories: C-ring, Euroblock connector, cut-out template, grill (pair packed)
