Article number 2213343

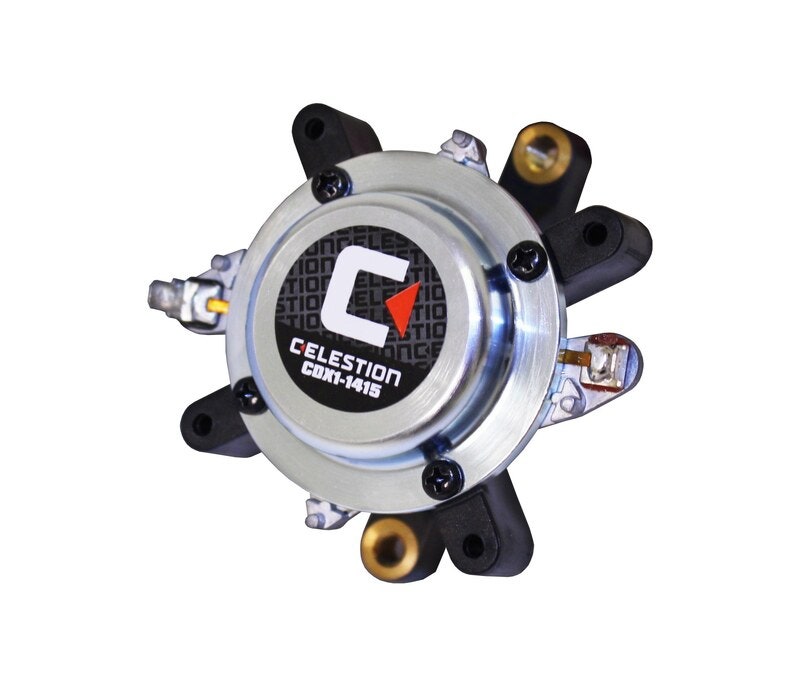

Celestion CDX1-1415 8R
1" exit, neodymium magnet, 1,4" voice coil compression driver. 20W RMS 104dB, 8ohm
1.4" copper clad aluminium voice coil
Copper sleeve on pole reduces inductive rise for improved HF performance
Ferrofluid in magnet gap prevents sensitivity loss through thermal compression
Aluminium diaphragm combined with elastomer surround delivers lower distortion performance
Compact pot magnet design reduces weight and minimises stray flux
Suitable for 2-way and 3-way systems
- Power rating: 20W RMS
- Nominal impedance: 8ohm
- Frequency range: 2000-20,000Hz
- Sensitivity: 104dB
- Recommended min. crossover: 2500Hz (12dB/oct)
- Voice coil diameter: 35mm/1.4in
- Voice coil material: Copper clad aluminium
- Diaphragm material: Aluminium
- Surround material: Elastomer
- Overall width: 90mm/3.54in
- Overall depth: 57mm/2.2in
- Fitting:Flange (2 x M6 holes on 76mm, 3.0in PCD
- Throat exit: 25,4mm/1.0in
- Unit weight: 0.25kg/0.6lb
