Article number 2213367

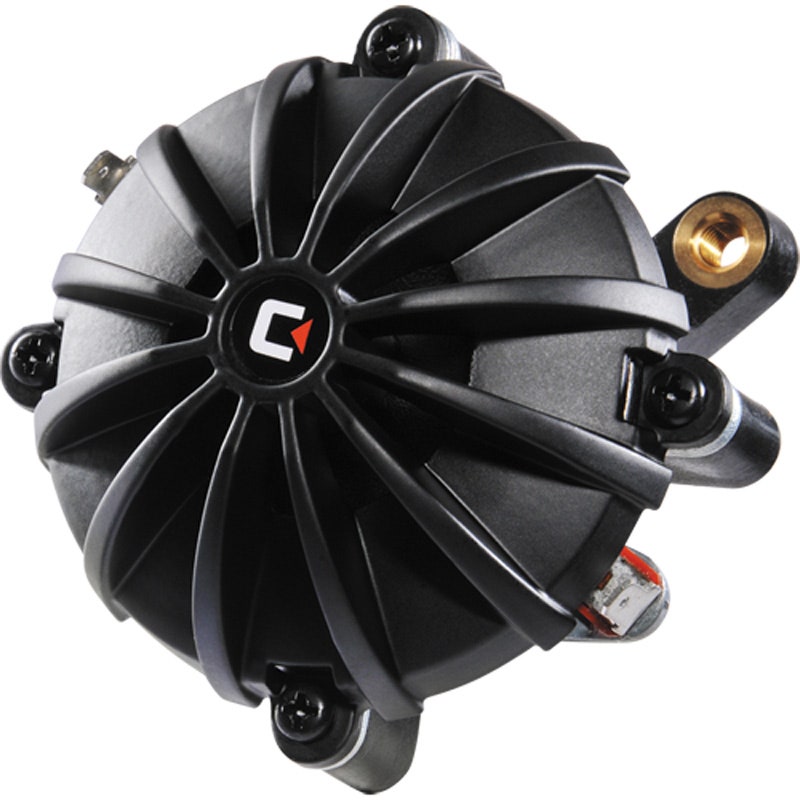

Celestion CDX1-1430 8R
1" exit, neodymium magnet, 1,4" voice coil compression driver. 50W RMS 108dB, 8ohm
1.4" copper clad aluminium voice coil
Copper sleeve on pole reduces inductive rise for improved HF performancel
Ferrofluid in magnet gap prevents sensitivity loss through thermal compressionl
Aluminium diaphragm combined with elastomer surround delivers lower distortion performancel
Finite Element Analysis (FEA) used to optimise both magnet and acoustic designl
Screw mounting adaptor availablel
- Power rating: 50W RMS
- Nominal impedance: 8ohm
- Frequency range: 2000-20,000Hz
- Sensitivity: 108dB
- Recommended min. crossover: 2500Hz (12dB/oct)
- Voice coil diameter: 35mm/1.4in
- Voice coil material: Copper clad aluminium
- Diaphragm material: Aluminium
- Surround material: Elastomer
- Overall width: 90mm/3.54in
- Overall depth: 58mm/2.3in
- Fitting:Flange (2 x M6 holes on 76mm, 3.0in PCD
- Throat exit: 25,4mm/1.0in
- Unit weight: 0.47kg/0.6lb
