Article number 2213779

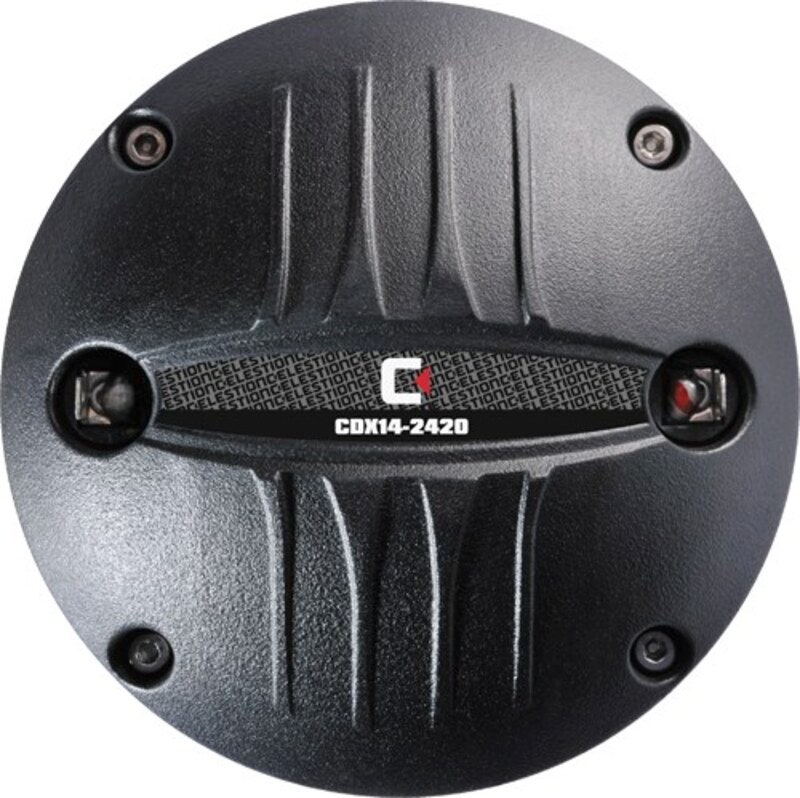

Celestion CDX14-2420 8R

1.4" exit, ferrite magnet, 2,4" voice coil compression driver. 70W RMS 106.5dB, 8ohm

Patented phase plug design method suppresses cavity resonances at higher frequencies

Titanium diaphragm, deep drawn to increase stiffness and reduce distortion

Lower compression ratio reduces air non-linearity and allows for higher maximum SPL

Rolled polyimide surround improves stiffness control, further lowering distortion

Curved coherent wavefront, optimised for horn loading

  • Power rating: 70W RMS
  • Nominal impedance: 8ohm
  • Frequency range: 800-20,000Hz
  • Sensitivity: 106,5dB
  • Recommended min. crossover: 1200Hz (12dB/oct)
  • Voice coil diameter: 60mm/2.4in
  • Diaphragm material: Titanium
  • Surround material: Polymide

  • Overall width: 116mm/4,6in
  • Overall depth: 56mm/2.2in
  • Fitting: Flange (4 x M6 holes on 102mm/4in PCD
  • Throat exit: 35,6mm/1.4in
  • Unit weight: 1,5kg/3.3lb
