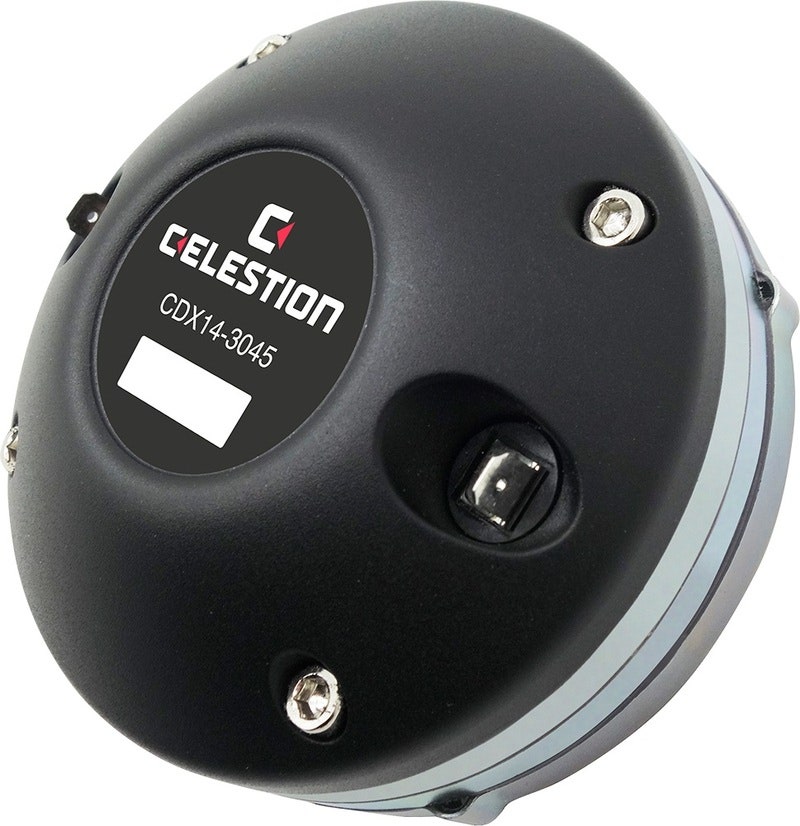

Celestion CDX14-3045
1.4-inch exit neodymium magnet compression driver
- Single piece titanium diaphragm and surround
- Enhanced surround shape for greater linearity
- High temperature polymer clamp ring minimise distortion
- Power rating: 120W
- Continuous power rating: 240W
- Rated impedance: 8Ω
- Sensitivity: 108dB
- Frequency range: 500-20,000Hz
- Recommended min. crossover: (12dB/oct)800Hz
- Magnet type: Neodymium
- Voice coil diameter: 75mm / 3in
- Voice coil material: Edgewound copper clad aluminium
- Diaphragm material: Titanium
- Surround material: Titanium
- Throat exit: 35mm / 1.4in
- Unit weight: 2kg / 4.4lb
