KORG microAUDIO 722

KORG microAUDIO 722 Analogue filter and Audio interface

The hybrid microAUDIO 722 takes everything a step further, incorporating KORG’s
legendary analog filter to provide a rich, expressive sound that blurs the line between interface and instrument, giving creators the freedom to shape tone in ways digital alone cannot achieve.

Compact Form, Premium Sound.

microAUDIO offers pristine, open sound with a strong sense of space and generous
headroom — all in a compact, desktop-ready design.
Studio-grade preamps are carefully tuned to deliver musical gain with minimal noise,
emphasizing clarity without adding unnecessary circuitry.
microAUDIO support up to 24-bit/192kHz audio, and feature balanced inputs and outputs for high-quality recording and playback.
Whether recording subtle vocal passages, layering synthesizers, or performing live, every
nuance is faithfully captured.

Intuitive, Hands-On Control for Creative Flow.

Each channel of the microAUDIO series offers versatile Mic/Line/Hi-Z inputs with 48V
phantom power, plus assignable Noise Gate, Compressor, and Limiter for smooth, musical gain with minimal noise.
Front-panel knobs provide intuitive control, while zero-latency direct monitoring ensures
immediate feedback during recording or live performance.
The Stereo Link function lets both channels be adjusted simultaneously with a single knob, making it easy to balance stereo sources, ideal for recording hardware synthesizers.
This intuitive workflow removes the complexity often associated with professional audio, so you can focus entirely on creativity rather than setup.

Ready for Streaming and Mobile Creation.

The built-in loopback mode allows you to send your PC audio directly into a live stream or DAW without any complicated routing, perfect for streaming, or sampling!
With USB-C connectivity, microAUDIO also works seamlessly with smartphones and tablets, making it easy to create music or stream on the go.
Whether you’re producing at home, performing on stage, or streaming online, the
microAUDIO adapts to your workflow, giving you professional sound wherever you
need it.

microAUDIO 722 — Where Analog Defines the Edge.

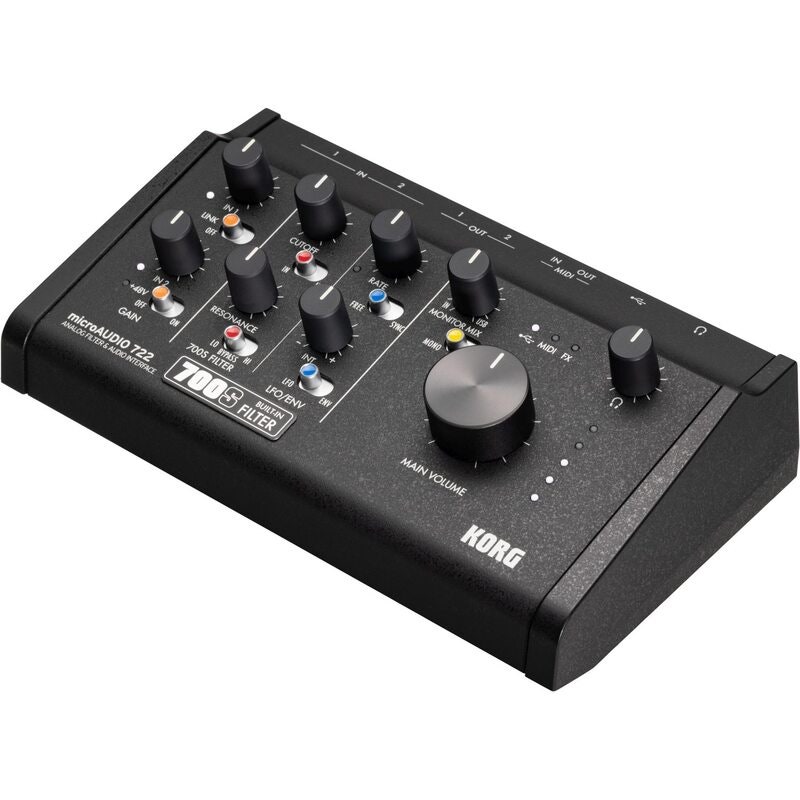

The microAUDIO 722 is a premium audio interface featuring the legendary analog filter from the miniKORG 700S, renowned for its warm, musical character and responsive behavior.
It can be used as a standalone analog filter or integrated into your DAW setup, offering unique tonal shaping possibilities.
For example, you can connect a guitar or bass and use it as an auto-wah effect, or route the output of digital synthesizers through the filter to add classic analog movement and character.
The filter offers Low-Pass, High-Pass, and Bypass modes, and can process not only the interface inputs but also any audio played back from a connected PC.
With MIDI In/Out connectivity, you can automate the filter, synchronize with external hardware, and explore creative hybrid workflows that blend digital precision with the miniKORG 700S’s distinctive analog expressiveness.

microAUDIO Editor—now available for 722.

The microAUDIO Editor is a dedicated application for editing effect settings—including the
Noise Gate and either a Compressor or Limiter—and configuring MIDI settings.
When connected to the microAUDIO 722,
filter settings are also available and synchronize with the unit’s knobs.

Filter Ark — The Heart of Creative Sound Design.

Bundled exclusively with microAUDIO, Filter Ark is KORG’s next-generation filter plugin for DAW-based production.
It faithfully recreates legendary analog filters from the MS-20, Polysix, miniKORG 700S, and ARP Odyssey, while introducing cutting-edge designs like physically modeled resonators and vowel-based filters.
With up to four filters routable in series, parallel, or feedback configurations, plus morphable LFOs, sequencers, and macros for advanced modulation, Filter Ark transforms filtering into a creative instrument of its own.
Thanks to scale quantization and performance-ready presets, every movement becomes musical — unlocking expressive, living sound design that goes far beyond the ordinary.

Software Bundle for Instant Creation.

In addition to Filter Ark, microAUDIO includes a comprehensive collection of software
instruments and production tools, such as Ableton Live Lite and iZotope Ozone Elements, covering everything from composition and recording to mixing and mastering — ready to use right out of the box.

Specifications:

•    Simultaneous I/O: 2 x 2
•    Number of Preamps: 2
•    A/D Resolution: 24-bit/192kHz
•    Phantom Power
•    Analog Inputs: 2 x combo (mic/line/Hi-Z)
•    Analog Outputs: 2 x 6.3mm TRS (DC coupled)
•    Headphones: 1 x 6.3mm
•    MIDI I/O (only microAUDIO 722)
•    Software: Korg Software Bundle
•    Power Supply: USB bus powered (USB-C), USB-C DC power adapter, 48V switch
•    Dimensions 207 × 128 × 68 mm
•    Weight: 553 g
